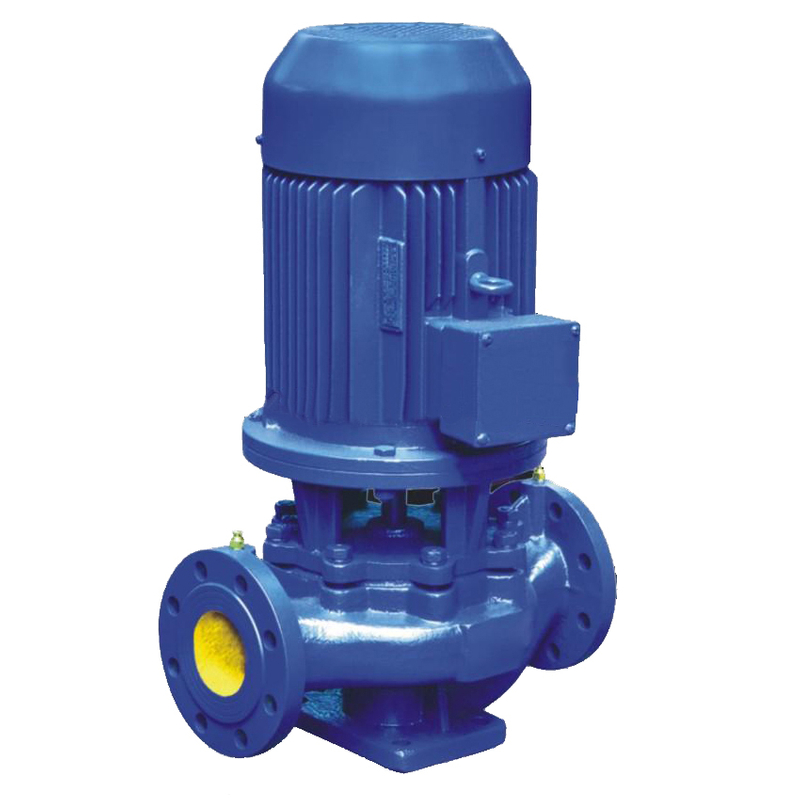

ISG Single Stage Single Suction Vertical Centrifugal Pump

ISG series single stage single suction verticall centrifugal pump is a high-efficient ,energy-saving product successfully designed by means of adopting the property data of IS model centrifugal pump and strictly in accordance with ISO2858 world standard and the latest national standard JB/T53058-93 and an ideal product to replace IS horizontal pump, DL model pump and other ordinary pumps.

Quantity:

ISG series single stage single suction vertical centrifugal pump is a high-efficient, energy-saving product successfully designed by means of adopting the property data of IS model centrifugal pump and the unique merits of vertical pump and strictly in accordance with ISO2858 world standard and the latest national standard JB/T53058-93 and an ideal product to replace IS horizontal pump, DL model pump and other ordinary pumps.

Features
1. Easy to mount. Because the inlet and outlet is located on the same central line, the pump can be directly mounted on any part of the pipeline just as a valve. Covered with a rain-proof cap, it can be operated outdoors.
2. Impeller mounted directly on the long axis of the motor, pump and motor bearing arrangement is reasonable, pump operation can effectively balance the radial and axial loads, thus ensuring the smooth operation of the pump, small vibration and low noise.
3. Mechanical shaft seal, use of imported titanium alloy seal ring, medium and high temperature mechanical seal with carbide materials, anti-wearing no leakage.
4. Easy installation and maintenance, no need to open pipeline system, the rotation parts of the pump can be pulled out by removing the screws on the pump.
5. According to the needs of flow and head, the pump can be used in series or parallel operation mode.

Working Conditions
1. Suction pressure ≤ 1.0MPa, the maximum pump system working pressure≤ 1.6MPa, the pump hydrostatic test pressure ≤ 2.5MPa.
2. Ambient temperature < 40 degrees, relative humidity&le; 40%.
3. Content of solid particles in the medium per unit volume does not exceed 0.1%, particle size < 0.2mm.

1. ISG vertical pipeline centrifugal pump for conveying water or other liquids that physical and chemical properties similar to water, like industrial and urban water supply and drainage, high-rise building pressurized water, garden irrigation, fire boost, long-distance transport, HVAC refrigeration cycle, bathroom and heating equipment for pressurized water circulation, temperature < 80 degrees.

2. ISR vertical hot water pump is used in metallurgy, chemical industry, textile, wood processing, paper and restaurants, bathrooms, hotels and other high-temperature hot water boiler loop pressurized transport and urban housing heating circulating pump, temperature below 120 degrees.

3. ISS vertical centrifugal pumps are widely used in high temperatures: Energy, metallurgy, chemicals, textiles, paper, and restaurants, bathrooms, hotels and other high-temperature hot water boiler loop pressurized transport and urban housing heating circulating pump, temperature 240 degrees below.
4. ISH vertical stainless steel chemical pump for conveying liquids without solid particles, corrosive, viscosity similar to water, which is used in petroleum, chemical, metallurgical, power, paper, food sectors such as pharmaceuticals and synthetic fibers, temperature is -20~ 120 degrees.

5. ISY vertical explosion-proof pumps for the transport of gasoline, kerosene, diesel and other petroleum products, medium temperature of -20 ~ + 120 degrees.

6. ISHY vertical stainless steel explosion-proof chemical centrifugal pump for conveying flammable and explosive chemical liquids.

7. The above model pump with low-speed motor, suitable for occasions that require low noise, and air conditioning water circulation, etc.

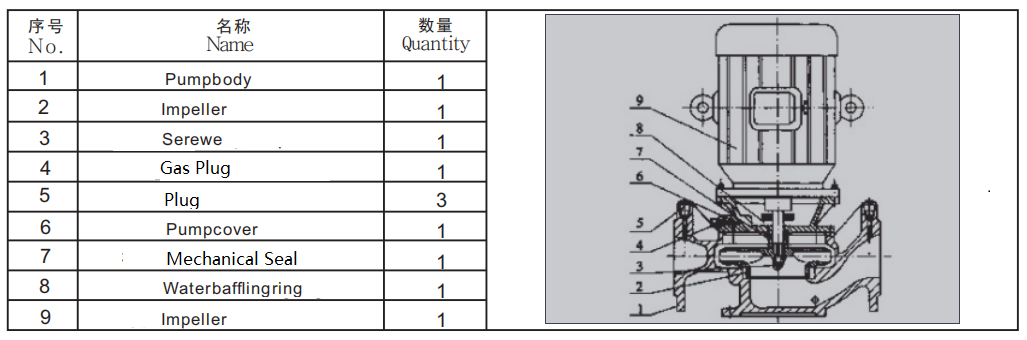

QQ图片20200313155442
