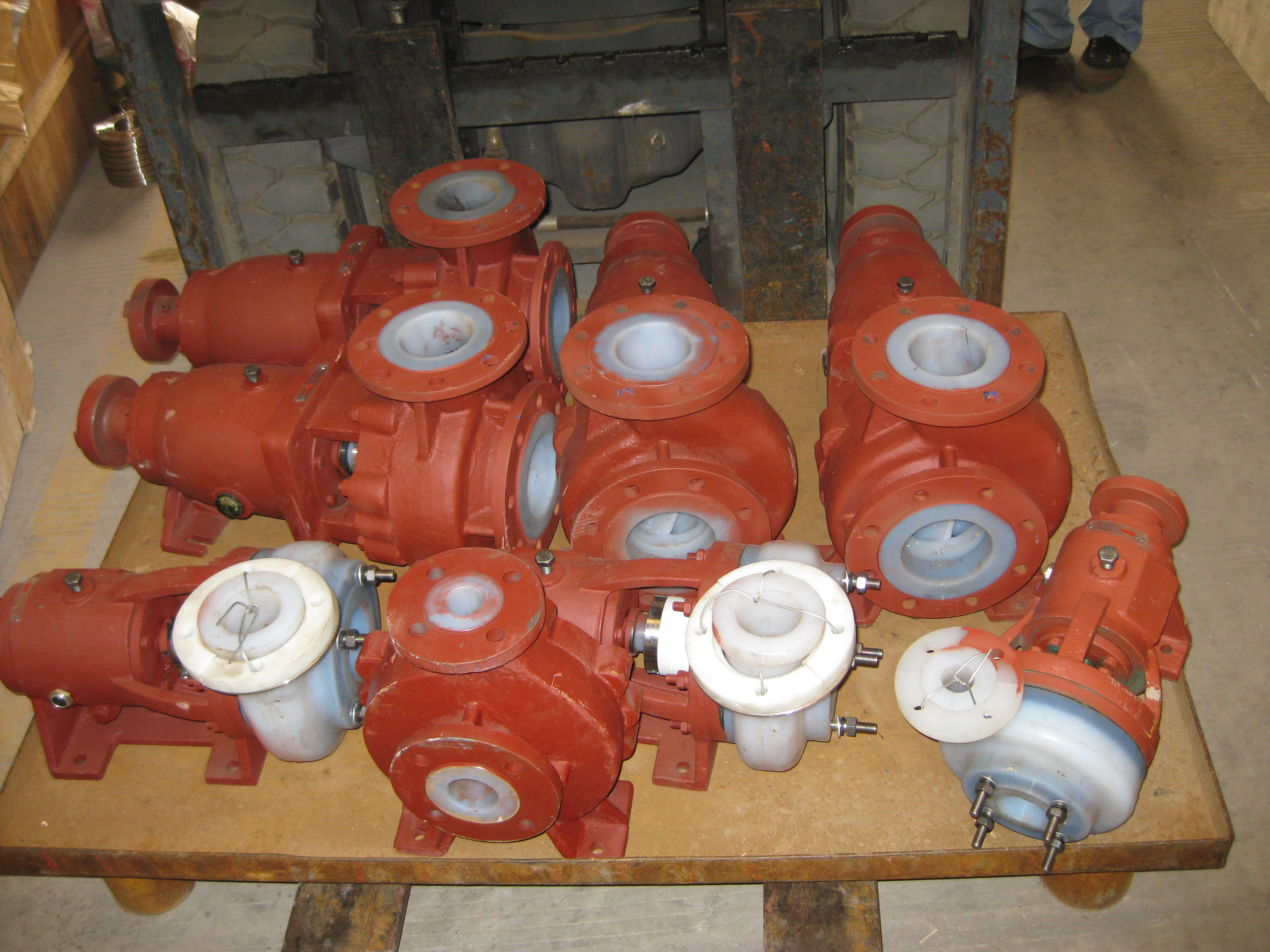

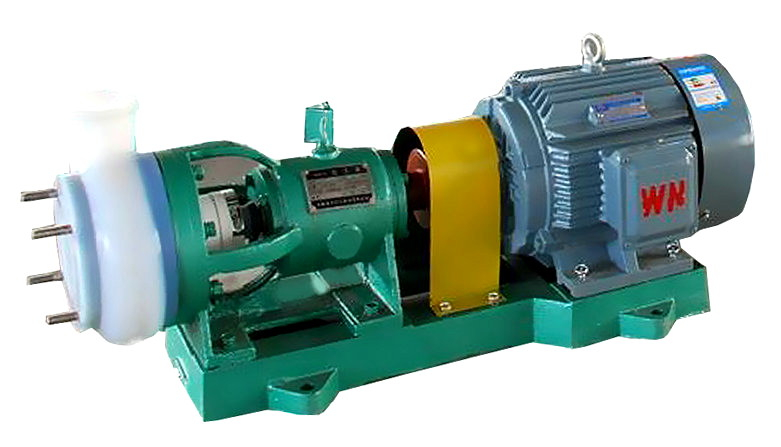

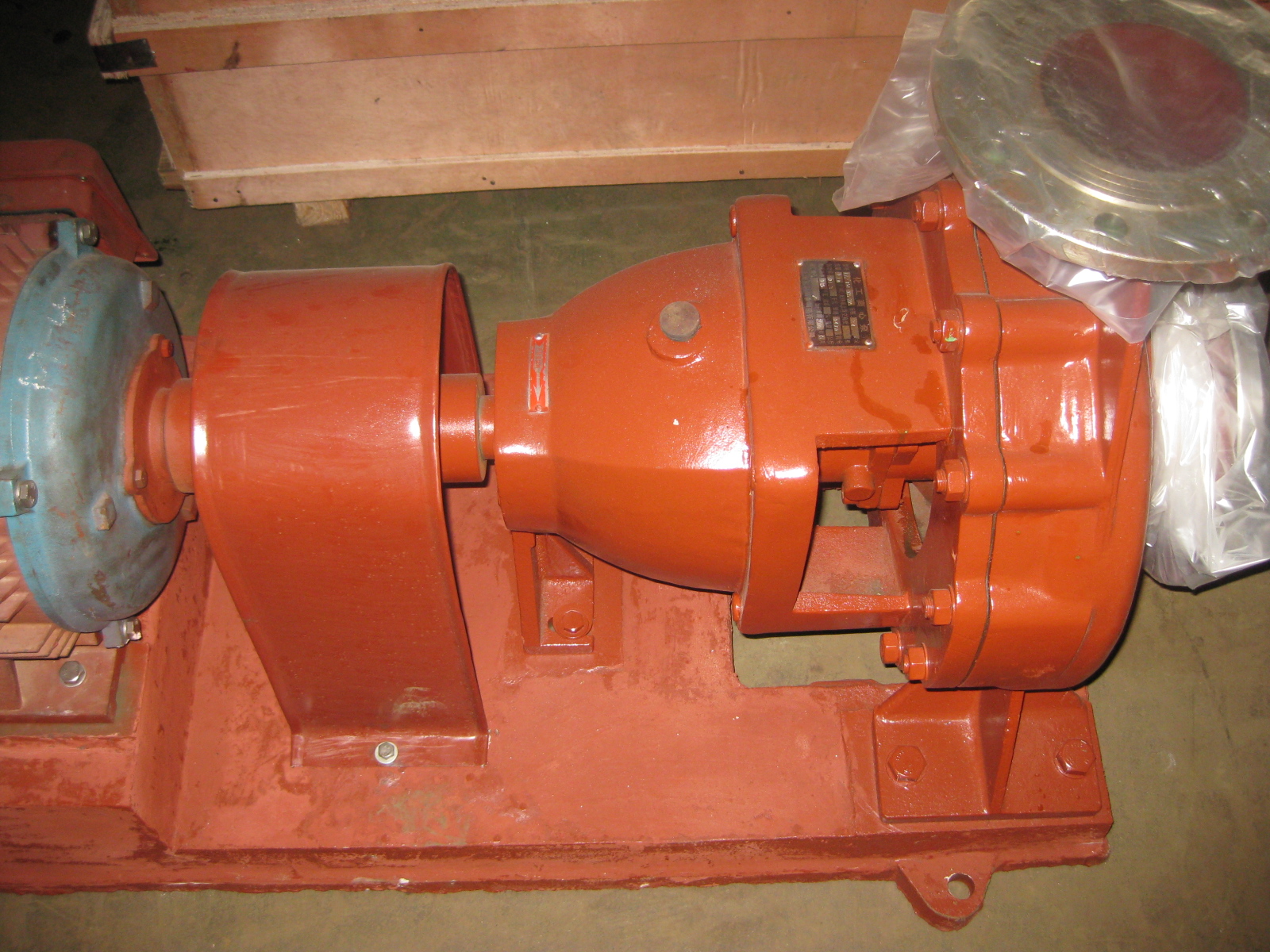

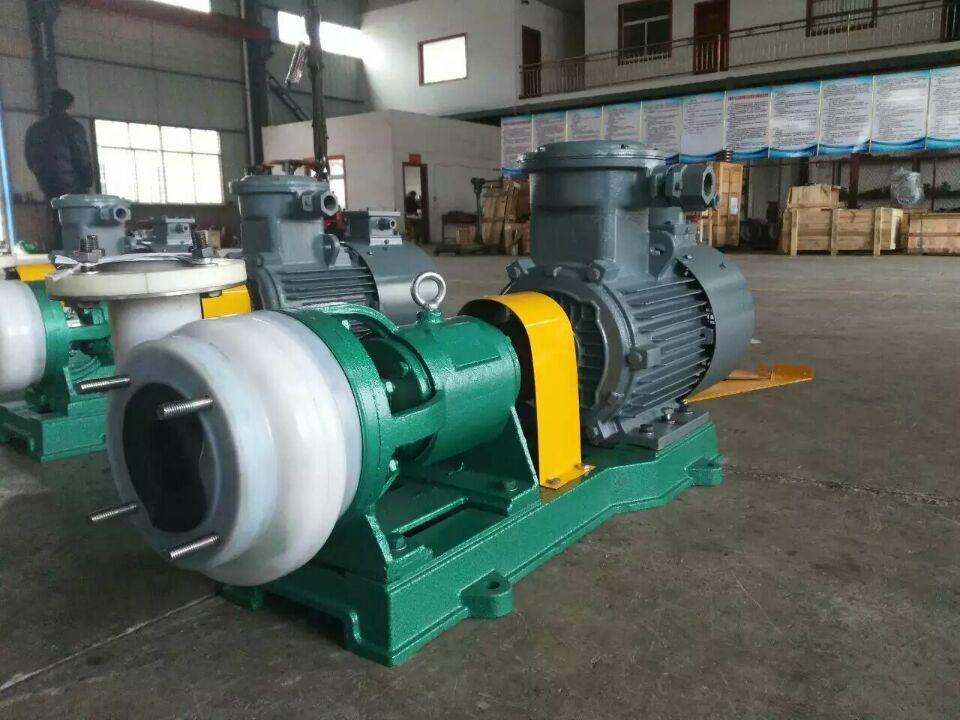

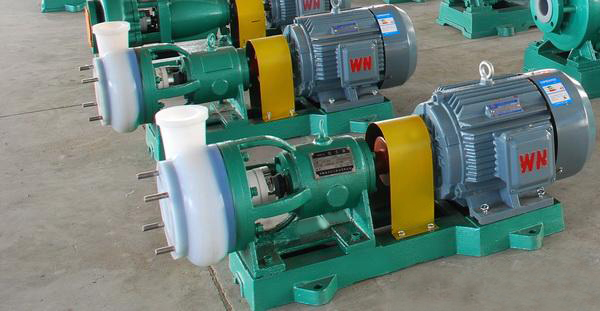

FSB\FSB(D) No-leaking Magnetic General Industries Pumps are widely applicable to the automobile manufacturing pickling, spray painting process; the electrolyte in the in the the non-ferrous metal smelting forwarding; the chlorine water in the ion-exchange membrane in the the caustic soda project, processing acid wastewater treatment, and and so on on process flow.
Operating temperature: -20 degrees to 100 degrees.
Medium
Acids & lyes
Waste water
Chlorine water
Electrolyte
Application Industry
Automobile pickling
Non-ferrous metal metallurgy
Caustic soda
Pesticide
Electronics
Papermaking
Design Feature
1. The wet parts of the FSB series No-leaking Magnetic Pumps are made of fluoroplastic alloy.
2. Compact structure, easily operating, and economical.
3. The pump casings, impellers, and mechanical seals of FSB/FSB (D) are interchangeable.
4. Impeller, mechanical seal and shaft are integrity, the torque transferred by morse taper shaft, and the shaft sealed by WB2 mechanical seal.
5. Main wet parts can be made by several material like: fluoroplastic , fluoroplastic alloy and PDFE etc.
6. Bracket structure, mating different power motors according to Medium gravity .
7. Grease – lubricated bearing,the bearing box needed to filled in engine oil
FSB\FSB(D) No-leaking Magnetic General Industries Pumps are widely applicable to the automobile manufacturing pickling, spray painting process; the electrolyte in the in the the non-ferrous metal smelting forwarding; the chlorine water in the ion-exchange membrane in the the caustic soda project, processing acid wastewater treatment, and and so on on process flow.
Operating temperature: -20 degrees to 100 degrees.
Medium
Acids & lyes
Waste water
Chlorine water
Electrolyte
Application Industry
Automobile pickling
Non-ferrous metal metallurgy
Caustic soda
Pesticide
Electronics
Papermaking
Design Feature
1. The wet parts of the FSB series No-leaking Magnetic Pumps are made of fluoroplastic alloy.
2. Compact structure, easily operating, and economical.
3. The pump casings, impellers, and mechanical seals of FSB/FSB (D) are interchangeable.
4. Impeller, mechanical seal and shaft are integrity, the torque transferred by morse taper shaft, and the shaft sealed by WB2 mechanical seal.
5. Main wet parts can be made by several material like: fluoroplastic , fluoroplastic alloy and PDFE etc.
6. Bracket structure, mating different power motors according to Medium gravity .
7. Grease – lubricated bearing,the bearing box needed to filled in engine oil
