XBC-ISW Single Stage Horizontal Centrifugal Fire Fighting Pump

XBC-ISW fire horizontal fire pump is the new generation of newly developed, Its hydraulic performance is in accordancewith the requirements of the ministry of public security's standard of fire water supply", The products are tested by the national fire equipmentquality supervision and Inspection center , the performance has reached the advanced level of similar foreign products, are the widest rangeand the most flexible fire pumps for currently fire fighting conditions
Availability:
Quantity:
  • XBC-ISW
  • SUOTO

ISW series single stage single suction horizontal centrifugal pump is a high-efficient ,energy-saving product successfully designed by means of adopting the property data of IS model centrifugal pump and strictly in accordance with ISO2858 world standard and the latest national standard JB/T53058-93 and an ideal product to replace IS horizontal pump, DL model pump and other ordinary pumps.

Features
1. Impeller mounted directly on the long axis of the motor, pump and motor bearing arrangement is reasonable, pump operation can effectively balance the radial and axial loads, thus ensuring the smooth operation of the pump, small vibration and low noise.
2. Mechanical shaft seal, use of imported titanium alloy seal ring, medium and high temperature mechanical seal with carbide materials, anti-wearing no leakage.
3. Easy installation and maintenance, no need to open pipeline system, the rotation parts of the pump can be pulled out by removing the screws on the pump.
4. According to the needs of flow and head, the pump can be used in series or parallel operation mode.

Working Conditions
1. Suction pressure ≤1.0MPa, the maximum pump system working pressure≤1.6MPa, the pump hydrostatic test pressure ≤2.5MPa.
2. Ambient temperature <40 ℃, relative humidity&le;40%.
3. Content of solid particles in the medium per unit volume does not exceed 0.1%, particle size <0.2mm.

ISW type centrifugal pump for conveying water or other liquids that physical and chemical properties similar to water, like industrial and urban water supply and drainage, high-rise building pressurized water, garden irrigation, fire boost, long-distance transport , HVAC refrigeration cycle, bathroom and heating equipment for pressurized water circulation, temperature <80 ℃.

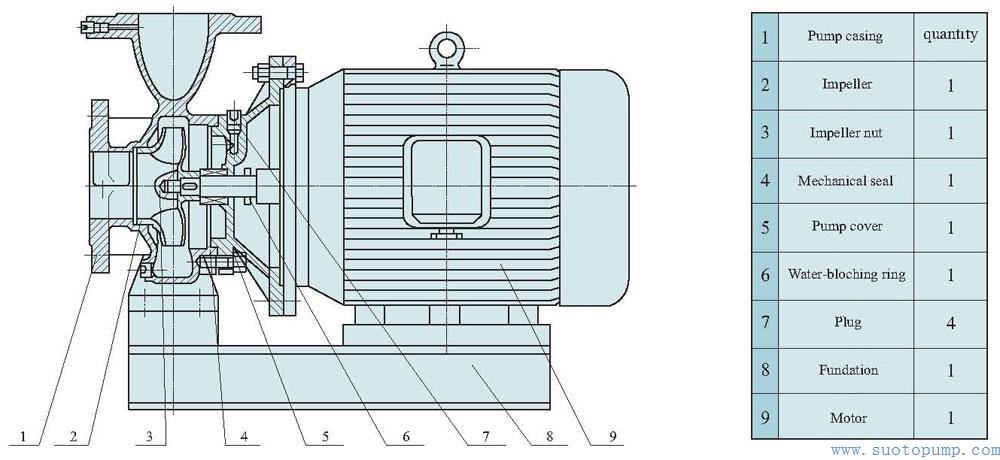

isw
