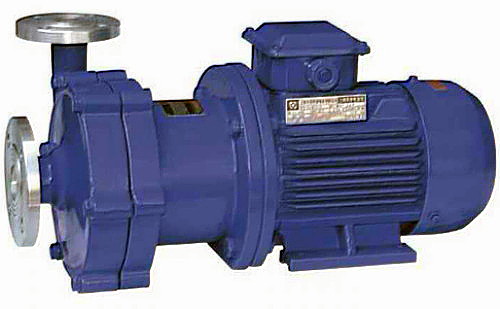

CQB type fluorine plastic magnetic pump is a kind of chemical process pump that is application of modern magnetics principles, using the permanent magnets, to realize non-contact indirect transmission of liquids. When the motor drive exterior rotor (namely the outside magnets) rotates, through the magnetic field to drive the inside rotor (namely inside magnetics) assembly and the impeller rotates synchronously, medium is completely closed in the stationary isolation chamber, so as to achieve leakfree pumping purpose, thoroughly solved the problem of the leakage of the shaft sealing transmission pumps, is a fully sealed,no leakage and pollution-free new industry pump.
Working Principle

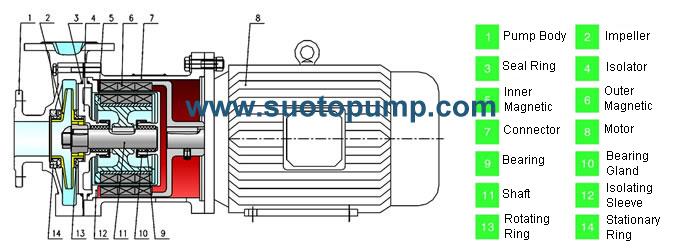

Magnetic pump is composed of pump, magnetic clutch, motor three parts. Key components magnetic transmission device includes outside and inside magnetic rotor, and not magnetic isolation chamber. When the motor rotates the outside magnetic, the magnetic field will penetrate into the air gap and the non-magnetic material, driving the magnetic rotor rotating with connected impeller to rotate synchronously, realize dynamic non-contact transfer, change the dynamic seals into static seals. Because the pump shaft, inner magnetic rotor is completely sealed by pump body, isolation set, thus completely solved "dripping, leakage" problem, eliminate the problem that petrochemical industry inflammable, explosive, toxic and harmful media leaked through the pump seal, guarantee worker's physical and mental health and safety production.
Applications
Our products are widely used in chemical, making acid, alkali manufacturing, pesticide, dye, medicine, papermaking, electroplating, electrolysis, pickling, scientific research institutions, national defense industry and other industries conveying arbitrary concentration of acid, alkali, oil, the rare and precious liquids, toxic liquid, volatile chemical medium, etc.
CQB type fluorine plastic magnetic pump is a kind of chemical process pump that is application of modern magnetics principles, using the permanent magnets, to realize non-contact indirect transmission of liquids. When the motor drive exterior rotor (namely the outside magnets) rotates, through the magnetic field to drive the inside rotor (namely inside magnetics) assembly and the impeller rotates synchronously, medium is completely closed in the stationary isolation chamber, so as to achieve leakfree pumping purpose, thoroughly solved the problem of the leakage of the shaft sealing transmission pumps, is a fully sealed,no leakage and pollution-free new industry pump.
Working Principle
Magnetic pump is composed of pump, magnetic clutch, motor three parts. Key components magnetic transmission device includes outside and inside magnetic rotor, and not magnetic isolation chamber. When the motor rotates the outside magnetic, the magnetic field will penetrate into the air gap and the non-magnetic material, driving the magnetic rotor rotating with connected impeller to rotate synchronously, realize dynamic non-contact transfer, change the dynamic seals into static seals. Because the pump shaft, inner magnetic rotor is completely sealed by pump body, isolation set, thus completely solved "dripping, leakage" problem, eliminate the problem that petrochemical industry inflammable, explosive, toxic and harmful media leaked through the pump seal, guarantee worker's physical and mental health and safety production.
Applications
Our products are widely used in chemical, making acid, alkali manufacturing, pesticide, dye, medicine, papermaking, electroplating, electrolysis, pickling, scientific research institutions, national defense industry and other industries conveying arbitrary concentration of acid, alkali, oil, the rare and precious liquids, toxic liquid, volatile chemical medium, etc.
During the daily use of the self-priming pump, there will be some more common problems. For example, the self-priming pump's non-pumping problem will be caused by many different reasons, so how do we deal with these problems is the key. The reasons why the self-priming pump does not pump water include the following aspects.
The hot water submersible pump is used for hot spring bathing, and can also be used for extracting groundwater from deep wells, and can also be used for water lifting projects such as rivers, reservoirs, and canals. It is mainly used for farmland irrigation and human and animal water in high mountain areas. It can also be used for central air conditioning cooling, heat pump units, cold pump units, cities, factories, railways, mines, and construction site drainage. The general flow rate can reach 5~650m³/h, and the head can reach 10-550 meters.

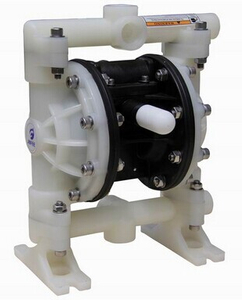

Diaphragm pump is a new type of conveying machinery that can convey various corrosive liquids, liquids with particles, high viscosity, volatile, flammable, and highly toxic liquids. Diaphragm pump has four materials: plastic, aluminum alloy, cast iron, stainless steel.
