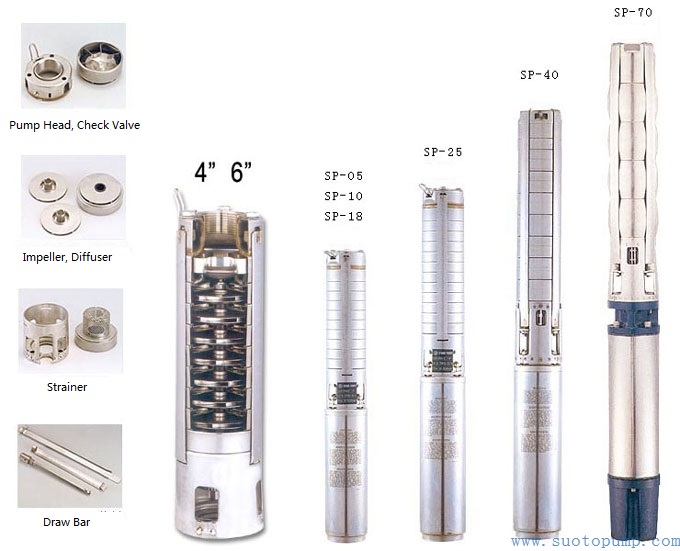

QJ series submersible deep-well pump is new type high grade product developed and produced based on the American, Italy advanced electric pumping technology. Main parts adopt stainless steel, copper alloy, make the pump high efficiency, energy-saving, wear resistance, rust and pollution resistance, good appearance, convenient installation. Especially suitable for factories, colleges, industrial and civil, irrigation and extraction of groundwater.
Product Range
1. 4" Submersible pump, The impellers and the diffusers are in plastic material(noryl),whereas the bearings are in ceramic/rubber lubricated by the water circulation.Check valve is incorporated in the delivery body with threaded outlet.The coupling Pump-motor is according to NEMA regulations.
2. 6"、8" Submersible pump, The impellers and the diffusers are in grey cast iron, (on request, the impellers can be supplied in bronze), whereas the bearings are in ceramic/rubber lubricated by the water circulation. Check valve is incorporated in the delivery body with threaded outlet (on request , it can be supplied flanged). The coupling Pump-motor is according to NEMA regulations.
3. 4"、6" Stainless steel submersible pump, the pump caising/impeller is made of stainless steel 304, 316.
QJ series submersible deep-well pump is new type high grade product developed and produced based on the American, Italy advanced electric pumping technology. Main parts adopt stainless steel, copper alloy, make the pump high efficiency, energy-saving, wear resistance, rust and pollution resistance, good appearance, convenient installation. Especially suitable for factories, colleges, industrial and civil, irrigation and extraction of groundwater.
Product Range
1. 4" Submersible pump, The impellers and the diffusers are in plastic material(noryl),whereas the bearings are in ceramic/rubber lubricated by the water circulation.Check valve is incorporated in the delivery body with threaded outlet.The coupling Pump-motor is according to NEMA regulations.
2. 6"、8" Submersible pump, The impellers and the diffusers are in grey cast iron, (on request, the impellers can be supplied in bronze), whereas the bearings are in ceramic/rubber lubricated by the water circulation. Check valve is incorporated in the delivery body with threaded outlet (on request , it can be supplied flanged). The coupling Pump-motor is according to NEMA regulations.
3. 4"、6" Stainless steel submersible pump, the pump caising/impeller is made of stainless steel 304, 316.
| m3/24h | No. | Model | Asia Type | Motor Moteur | Single-Phase | Three-Phase | Capacity | Outlet | Well diameter | |||
| HP | KW | A | A | m3/h | mm | mm | ||||||
| 40m3 | 1 | R95-S-08 | 100QJ1.2-59/8 | 0.5 | 0.37 | 3.6 | 1.8 | 0.6m3/67m | 1.2m3/59m | 1.8m3/46m | 30mm 1"1/4G | 100 |
| 2 | R95-S-12 | 100QJ1.2-86/12 | 0.75 | 0.55 | 4.8 | 2 | 0.6m3/98m | 1.2m3/86m | 1.8m3/68m | |||
| 3 | R95-S-14 | 100QJ1.2-101/14 | 1 | 0.75 | 6.3 | 2.5 | 0.6m3/114m | 1.2m3/101m | 1.8m3/80m | |||
| 4 | R95-S-16 | 100QJ1.2-115/16 | 1.5 | 1.1 | 8.6 | 3.4 | 0.6m3/131m | 1.2m3/115m | 1.8m3/90m | |||
| 5 | R95-S-22 | 100QJ1.2-158/22 | 2 | 1.5 | 10 | 4.4 | 0.6m3/180m | 1.2m3/158m | 1.8m3/124m | |||
| 6 | R95-S-28 | 100QJ1.2-203/28 | 3 | 2.2 | 14 | 6.2 | 0.6m3/229m | 1.2m3/203m | 1.8m3/158m | |||
| 60m3 | 7 | R95-A-06 | 100QJ2-40/6 | 0.5 | 0.37 | 3.6 | 1.8 | 1.5m3/43m | 2m3/40m | 3m3/30m | 30mm 1"1/4G | 100 |
| 8 | R95-A-08 | 100QJ2-56/8 | 0.75 | 0.55 | 4.8 | 2 | 1.5m3/60m | 2m3/56m | 3m3/42m | |||
| 9 | R95-A-12 | 100QJ2-83/12 | 1 | 0.75 | 6.3 | 2.5 | 1.5m3/89m | 2m3/83m | 3m3/62m | |||
| 10 | R95-A-16 | 100QJ2-109/16 | 1.5 | 1.1 | 8.6 | 3.4 | 1.5m3/116m | 2m3/109m | 3m3/81m | |||
| 11 | R95-A-20 | 100QJ2-137/20 | 2 | 1.5 | 10 | 4.4 | 1.5m3/146m | 2m3/137m | 3m3/102m | |||
| 12 | R95-A-30 | 100QJ2-200/30 | 3 | 2.2 | 14 | 6.2 | 1.5m3/214m | 2m3/200m | 3m3/142m | |||
| 13 | R95-A-40 | 100QJ2-254/40 | 4 | 3 | - | 8.3 | 1.5m3/281m | 2m3/254m | 3m3/180m | |||
| 14 | R95-A-50 | 100QJ2-310/50 | 5.5 | 4 | - | 10.3 | 1.5m3/330m | 2m3/310m | 3m3/235m | |||
| 100m3 | 15 | R95-VC-06 | 100QJ4-30/6 | 0.75 | 0.55 | 4.8 | 2 | 3m3/35m | 4m3/30m | 5m3/22m | 40mm 1"1/2G | |
| 16 | R95-VC-09 | 100QJ4-39/9 | 1 | 0.75 | 6.3 | 2.5 | 3m3/46m | 4m3/39m | 5m3/27m | |||
| 17 | R95-VC-12 | 100QJ4-60/12 | 1.5 | 1.1 | 8.6 | 3.4 | 3m3/69m | 4m3/60m | 5m3/43m | |||
| 18 | R95-VC-16 | 100QJ4-80/16 | 2 | 1.5 | 10 | 4.4 | 3m3/90m | 4m3/80m | 5m3/58m | |||
| 19 | R95-VC-20 | 100QJ4-100/20 | 3 | 2.2 | 14 | 6.2 | 3m3/115m | 4m3/100m | 5m3/70m | |||
| 20 | R95-VC-24 | 100QJ4-120/24 | 4 | 3 | - | 8.3 | 3m3/138m | 4m3/120m | 5m3/86m | |||
| 21 | R95-VC-30 | 100QJ4-140/30 | 4 | 3 | - | 8.3 | 3m3/165m | 4m3/140m | 5m3/102m | |||
| 22 | R95-VC-40 | 100QJ4-180/40 | 5.5 | 4 | - | 10.3 | 3m3/210m | 4m3/180m | 5m3/129m | |||
| 23 | R95-VC-55 | 100QJ4-255/55 | 7.5 | 5.5 | - | 14 | 3m3/287m | 4m3/255m | 5m3/180m | |||
| 24 | R95-VC-75 | 100QJ4-340/75 | 10 | 7.5 | - | 18.5 | 3m3/375m | 4m3/340m | 5m3/245m | |||
| 150m3 | 25 | R95-BF-06 | 100QJ6-28/6 | 1 | 0.75 | 4.8 | 2.5 | 4m3/36m | 6m3/28m | 7m3/20m | ||
| 26 | R95-BF-09 | 100QJ6-40/9 | 1.5 | 1.1 | 8.6 | 3.4 | 4m3/53m | 6m3/40m | 7m3/30m | |||
| 27 | R95-BF-11 | 100QJ6-47/11 | 2 | 1.5 | 10 | 4.4 | 4m3/65m | 6m3/47m | 7m3/33m | |||
| 28 | R95-BF-13 | 100QJ6-59/13 | 2 | 1.5 | 10 | 4.4 | 4m3/78m | 6m3/59m | 7m3/40m | |||
| 29 | R95-BF-18 | 100QJ6-83/18 | 3 | 2.2 | 14 | 6.2 | 4m3/108m | 6m3/83m | 7m3/57m | |||
| 30 | R95-BF-23 | 100QJ6-110/23 | 4 | 3 | - | 8.3 | 4m3/152m | 6m3/110m | 7m3/85m | |||
| 31 | R95-BF-32 | 100QJ6-144/32 | 5.5 | 4 | - | 10.3 | 4m3/190m | 6m3/144m | 7m3/103m | |||
| 32 | R95-BF-40 | 100QJ6-176/40 | 7.5 | 5.5 | - | 13.7 | 4m3/235m | 6m3/176m | 7m3/127m | |||
| 33 | R95-BF-56 | 100QJ6-213/56 | 10 | 7.5 | - | 18.5 | 4m3/309m | 6m3/213m | 7m3/148m | |||
| 200m3 | 34 | R95-DF-08 | 100QJ8-35/8 | 2 | 1.5 | 10 | 4.4 | 6m3/44m | 8m3/35m | 10m3/24m | 50mm 2 "G | |
| 35 | R95-DF-13 | 100QJ8-61/13 | 3 | 2.2 | 14 | 6.2 | 6m3/75m | 8m3/61m | 10m3/43m | |||
| 36 | R95-DF-17 | 100QJ8-84/17 | 4 | 3 | - | 8.3 | 6m3/100m | 8m3/84m | 10m3/59m | |||
| 37 | R95-DF-20 | 100QJ8-96/20 | 4 | 3 | - | 8.6 | 6m3/118m | 8m3/96m | 10m3/68m | |||
| 38 | R95-DF-24 | 100QJ8-118/24 | 5.5 | 4 | - | 10.3 | 6m3/141m | 8m3/118m | 10m3/86m | |||
| 39 | R95-DF-30 | 100QJ8-143/30 | 7.5 | 5.5 | - | 13.7 | 6m3/169m | 8m3/143m | 10m3/98m | |||
| 40 | R95-DF-35 | 100QJ8-171/35 | 10 | 7.5 | - | 18.5 | 6m3/205m | 8m3/171m | 10m3/118m | |||
| 300m3 | 41 | R95-MA-07 | 100QJ10-26/7 | 2 | 1.5 | 10 | 4.4 | 8m3/29m | 10m3/26m | 14m3/20m | ||
| 42 | R95-MA-10 | 100QJ10-39/10 | 3 | 2.2 | 14 | 6.2 | 8m3/44m | 10m3/39m | 14m3/29m | |||
| 43 | R95-MA-13 | 100QJ10-56/13 | 4 | 3 | - | 8.3 | 8m3/61m | 10m3/56m | 14m3/43m | |||
| 44 | R95-MA-17 | 100QJ10-75/17 | 5.5 | 4 | - | 10.3 | 8m3/82m | 10m3/75m | 14m3/59m | |||
| 45 | R95-MA-22 | 100QJ10-100/22 | 7.5 | 5.5 | - | 13.7 | 8m3/109m | 10m3/100m | 14m3/79m | |||
| 46 | R95-MA-28 | 100QJ10-130/28 | 10 | 7.5 | - | 18.5 | 8m3/142m | 10m3/130m | 14m3/102m | |||
| 400m3 | 47 | R95-DG-07 | 100QJ16-25/7 | 3 | 2.2 | 14 | 6.2 | 12m3/31m | 16m3/25m | 20m3/19m | ||
| 48 | R95-DG-10 | 100QJ16-36/10 | 4 | 3 | - | 8.3 | 12m3/44m | 16m3/36m | 20m3/28m | |||
| 49 | R95-DG-14 | 100QJ16-50/14 | 5.5 | 4 | - | 10.3 | 12m3/62m | 16m3/50m | 20m3/36m | |||
| 50 | R95-DG-18 | 100QJ16-63/18 | 7.5 | 5.5 | - | 13.7 | 12m3/79m | 16m3/63m | 20m3/59m | |||
| 51 | R95-DG-21 | 100QJ16-75/21 | 10 | 7.5 | - | 18.5 | 12m3/93m | 16m3/75m | 20m3/68m | |||
| 52 | R95-DG-24 | 100QJ16-94/25 | 10 | 7.5 | - | 18.5 | 12m3/114m | 16m3/94m | 20m3/83m | |||
| m3/24h | No. | Model | Asia Type | Motor Moteur | Single-Phase | Three-Phase | Capacity | Outlet | Well diameter | |||
| HP | KW | A | A | m3/h | mm | mm | ||||||
| 40m3 | 1 | R95-S-08 | 100QJ1.2-59/8 | 0.5 | 0.37 | 3.6 | 1.8 | 0.6m3/67m | 1.2m3/59m | 1.8m3/46m | 30mm 1"1/4G | 100 |
| 2 | R95-S-12 | 100QJ1.2-86/12 | 0.75 | 0.55 | 4.8 | 2 | 0.6m3/98m | 1.2m3/86m | 1.8m3/68m | |||
| 3 | R95-S-14 | 100QJ1.2-101/14 | 1 | 0.75 | 6.3 | 2.5 | 0.6m3/114m | 1.2m3/101m | 1.8m3/80m | |||
| 4 | R95-S-16 | 100QJ1.2-115/16 | 1.5 | 1.1 | 8.6 | 3.4 | 0.6m3/131m | 1.2m3/115m | 1.8m3/90m | |||
| 5 | R95-S-22 | 100QJ1.2-158/22 | 2 | 1.5 | 10 | 4.4 | 0.6m3/180m | 1.2m3/158m | 1.8m3/124m | |||
| 6 | R95-S-28 | 100QJ1.2-203/28 | 3 | 2.2 | 14 | 6.2 | 0.6m3/229m | 1.2m3/203m | 1.8m3/158m | |||
| 60m3 | 7 | R95-A-06 | 100QJ2-40/6 | 0.5 | 0.37 | 3.6 | 1.8 | 1.5m3/43m | 2m3/40m | 3m3/30m | 30mm 1"1/4G | 100 |
| 8 | R95-A-08 | 100QJ2-56/8 | 0.75 | 0.55 | 4.8 | 2 | 1.5m3/60m | 2m3/56m | 3m3/42m | |||
| 9 | R95-A-12 | 100QJ2-83/12 | 1 | 0.75 | 6.3 | 2.5 | 1.5m3/89m | 2m3/83m | 3m3/62m | |||
| 10 | R95-A-16 | 100QJ2-109/16 | 1.5 | 1.1 | 8.6 | 3.4 | 1.5m3/116m | 2m3/109m | 3m3/81m | |||
| 11 | R95-A-20 | 100QJ2-137/20 | 2 | 1.5 | 10 | 4.4 | 1.5m3/146m | 2m3/137m | 3m3/102m | |||
| 12 | R95-A-30 | 100QJ2-200/30 | 3 | 2.2 | 14 | 6.2 | 1.5m3/214m | 2m3/200m | 3m3/142m | |||
| 13 | R95-A-40 | 100QJ2-254/40 | 4 | 3 | - | 8.3 | 1.5m3/281m | 2m3/254m | 3m3/180m | |||
| 14 | R95-A-50 | 100QJ2-310/50 | 5.5 | 4 | - | 10.3 | 1.5m3/330m | 2m3/310m | 3m3/235m | |||
| 100m3 | 15 | R95-VC-06 | 100QJ4-30/6 | 0.75 | 0.55 | 4.8 | 2 | 3m3/35m | 4m3/30m | 5m3/22m | 40mm 1"1/2G | |
| 16 | R95-VC-09 | 100QJ4-39/9 | 1 | 0.75 | 6.3 | 2.5 | 3m3/46m | 4m3/39m | 5m3/27m | |||
| 17 | R95-VC-12 | 100QJ4-60/12 | 1.5 | 1.1 | 8.6 | 3.4 | 3m3/69m | 4m3/60m | 5m3/43m | |||
| 18 | R95-VC-16 | 100QJ4-80/16 | 2 | 1.5 | 10 | 4.4 | 3m3/90m | 4m3/80m | 5m3/58m | |||
| 19 | R95-VC-20 | 100QJ4-100/20 | 3 | 2.2 | 14 | 6.2 | 3m3/115m | 4m3/100m | 5m3/70m | |||
| 20 | R95-VC-24 | 100QJ4-120/24 | 4 | 3 | - | 8.3 | 3m3/138m | 4m3/120m | 5m3/86m | |||
| 21 | R95-VC-30 | 100QJ4-140/30 | 4 | 3 | - | 8.3 | 3m3/165m | 4m3/140m | 5m3/102m | |||
| 22 | R95-VC-40 | 100QJ4-180/40 | 5.5 | 4 | - | 10.3 | 3m3/210m | 4m3/180m | 5m3/129m | |||
| 23 | R95-VC-55 | 100QJ4-255/55 | 7.5 | 5.5 | - | 14 | 3m3/287m | 4m3/255m | 5m3/180m | |||
| 24 | R95-VC-75 | 100QJ4-340/75 | 10 | 7.5 | - | 18.5 | 3m3/375m | 4m3/340m | 5m3/245m | |||
| 150m3 | 25 | R95-BF-06 | 100QJ6-28/6 | 1 | 0.75 | 4.8 | 2.5 | 4m3/36m | 6m3/28m | 7m3/20m | ||
| 26 | R95-BF-09 | 100QJ6-40/9 | 1.5 | 1.1 | 8.6 | 3.4 | 4m3/53m | 6m3/40m | 7m3/30m | |||
| 27 | R95-BF-11 | 100QJ6-47/11 | 2 | 1.5 | 10 | 4.4 | 4m3/65m | 6m3/47m | 7m3/33m | |||
| 28 | R95-BF-13 | 100QJ6-59/13 | 2 | 1.5 | 10 | 4.4 | 4m3/78m | 6m3/59m | 7m3/40m | |||
| 29 | R95-BF-18 | 100QJ6-83/18 | 3 | 2.2 | 14 | 6.2 | 4m3/108m | 6m3/83m | 7m3/57m | |||
| 30 | R95-BF-23 | 100QJ6-110/23 | 4 | 3 | - | 8.3 | 4m3/152m | 6m3/110m | 7m3/85m | |||
| 31 | R95-BF-32 | 100QJ6-144/32 | 5.5 | 4 | - | 10.3 | 4m3/190m | 6m3/144m | 7m3/103m | |||
| 32 | R95-BF-40 | 100QJ6-176/40 | 7.5 | 5.5 | - | 13.7 | 4m3/235m | 6m3/176m | 7m3/127m | |||
| 33 | R95-BF-56 | 100QJ6-213/56 | 10 | 7.5 | - | 18.5 | 4m3/309m | 6m3/213m | 7m3/148m | |||
| 200m3 | 34 | R95-DF-08 | 100QJ8-35/8 | 2 | 1.5 | 10 | 4.4 | 6m3/44m | 8m3/35m | 10m3/24m | 50mm 2 "G | |
| 35 | R95-DF-13 | 100QJ8-61/13 | 3 | 2.2 | 14 | 6.2 | 6m3/75m | 8m3/61m | 10m3/43m | |||
| 36 | R95-DF-17 | 100QJ8-84/17 | 4 | 3 | - | 8.3 | 6m3/100m | 8m3/84m | 10m3/59m | |||
| 37 | R95-DF-20 | 100QJ8-96/20 | 4 | 3 | - | 8.6 | 6m3/118m | 8m3/96m | 10m3/68m | |||
| 38 | R95-DF-24 | 100QJ8-118/24 | 5.5 | 4 | - | 10.3 | 6m3/141m | 8m3/118m | 10m3/86m | |||
| 39 | R95-DF-30 | 100QJ8-143/30 | 7.5 | 5.5 | - | 13.7 | 6m3/169m | 8m3/143m | 10m3/98m | |||
| 40 | R95-DF-35 | 100QJ8-171/35 | 10 | 7.5 | - | 18.5 | 6m3/205m | 8m3/171m | 10m3/118m | |||
| 300m3 | 41 | R95-MA-07 | 100QJ10-26/7 | 2 | 1.5 | 10 | 4.4 | 8m3/29m | 10m3/26m | 14m3/20m | ||
| 42 | R95-MA-10 | 100QJ10-39/10 | 3 | 2.2 | 14 | 6.2 | 8m3/44m | 10m3/39m | 14m3/29m | |||
| 43 | R95-MA-13 | 100QJ10-56/13 | 4 | 3 | - | 8.3 | 8m3/61m | 10m3/56m | 14m3/43m | |||
| 44 | R95-MA-17 | 100QJ10-75/17 | 5.5 | 4 | - | 10.3 | 8m3/82m | 10m3/75m | 14m3/59m | |||
| 45 | R95-MA-22 | 100QJ10-100/22 | 7.5 | 5.5 | - | 13.7 | 8m3/109m | 10m3/100m | 14m3/79m | |||
| 46 | R95-MA-28 | 100QJ10-130/28 | 10 | 7.5 | - | 18.5 | 8m3/142m | 10m3/130m | 14m3/102m | |||
| 400m3 | 47 | R95-DG-07 | 100QJ16-25/7 | 3 | 2.2 | 14 | 6.2 | 12m3/31m | 16m3/25m | 20m3/19m | ||
| 48 | R95-DG-10 | 100QJ16-36/10 | 4 | 3 | - | 8.3 | 12m3/44m | 16m3/36m | 20m3/28m | |||
| 49 | R95-DG-14 | 100QJ16-50/14 | 5.5 | 4 | - | 10.3 | 12m3/62m | 16m3/50m | 20m3/36m | |||
| 50 | R95-DG-18 | 100QJ16-63/18 | 7.5 | 5.5 | - | 13.7 | 12m3/79m | 16m3/63m | 20m3/59m | |||
| 51 | R95-DG-21 | 100QJ16-75/21 | 10 | 7.5 | - | 18.5 | 12m3/93m | 16m3/75m | 20m3/68m | |||
| 52 | R95-DG-24 | 100QJ16-94/25 | 10 | 7.5 | - | 18.5 | 12m3/114m | 16m3/94m | 20m3/83m | |||
| m3/24h | NO. | Model | Asia Type | Motor Moteur | Three-Phase | Capacity | Outlet | Well diameter | |||
| HP | KW | A | m3/h | mm | mm | ||||||
| 400m3 | 1 | R150-BS-02* | 150QJ12-25/2 | 2 | 1.5 | 4.4 | 8m3/30m | 12m3/25m | 16m3/18m | 65mm 2"1/2G | 150 |
| 2 | R150-BS-03* | 150QJ12-38/3 | 3 | 2.2 | 5.6 | 8m3/45m | 12m3/38m | 16m3/27m | |||
| 3 | R150-BS-04* | 150QJ12-51/4 | 4 | 3 | 8 | 8m3/60m | 12m3/51m | 16m3/36m | |||
| 4 | R150-BS-06* | 150QJ12-76/6 | 5.5 | 4 | 10 | 8m3/89m | 12m3/76m | 16m3/54m | |||
| 5 | R150-BS-08 | 150QJ12-102/8 | 7.5 | 5.5 | 13 | 8m3/119m | 12m3/102m | 16m3/72m | |||
| 6 | R150-BS-11 | 150QJ12-140/11 | 10 | 7.5 | 17 | 8m3/164m | 12m3/140m | 16m3/100m | |||
| 7 | R150-BS-14 | 150QJ12-178/14 | 12.5 | 9.2 | 21 | 8m3/209m | 12m3/178m | 16m3/127m | |||
| 8 | R150-BS-16 | 150QJ12-205/16 | 15 | 11 | 24 | 8m3/239m | 12m3/205m | 16m3/145m | |||
| 9 | R150-BS-19 | 150QJ12-243/19 | 18.5 | 13 | 28 | 8m3/283m | 12m3/243m | 16m3/172m | |||
| 10 | R150-BS-21 | 150QJ12-268/21 | 20 | 15 | 32 | 8m3/313m | 12m3/268m | 16m3/190m | |||
| 11 | R150-BS-23 | 150QJ12-293/23 | 25 | 18.5 | 40 | 8m3/343m | 12m3/293m | 16m3/208m | |||
| 600m3 | 12 | R150-DS-03* | 150QJ20-28/3 | 4 | 3 | 8 | 16m3/34m | 20m3/28m | 25m3/19m | 65mm 2"1/2G | 150 |
| 13 | R150-DS-04* | 150QJ20-37/4 | 5.5 | 4 | 10 | 16m3/45m | 20m3/37m | 25m3/25m | |||
| 14 | R150-DS-05* | 150QJ20-46/5 | 5.5 | 4 | 10 | 16m3/56m | 20m3/46m | 25m3/31m | |||
| 15 | R150-DS-07 | 150QJ20-65/7 | 7.5 | 5.5 | 13 | 16m3/79m | 20m3/65m | 25m3/44m | |||
| 16 | R150-DS-09 | 150QJ20-84/9 | 10 | 7.5 | 17 | 16m3/101m | 20m3/84m | 25m3/56m | |||
| 17 | R150-DS-11 | 150QJ20-102/11 | 12.5 | 9.2 | 21 | 16m3/124m | 20m3/102m | 25m3/69m | |||
| 18 | R150-DS-14 | 150QJ20-130/14 | 15 | 11 | 24 | 16m3/157m | 20m3/130m | 25m3/88m | |||
| 19 | R150-DS-16 | 150QJ20-149/16 | 18.5 | 13 | 28 | 16m3/180m | 20m3/149m | 25m3/100m | |||
| 20 | R150-DS-18 | 150QJ20-167/18 | 20 | 15 | 32 | 16m3/202m | 20m3/167m | 25m3/113m | |||
| 21 | R150-DS-20 | 150QJ20-186/20 | 25 | 18.5 | 40 | 16m3/225m | 20m3/186m | 25m3/125m | |||
| 22 | R150-DS-22 | 150QJ20-204/22 | 25 | 18.5 | 40 | 16m3/247m | 20m3/204m | 25m3/138m | |||
| 23 | R150-DS-25 | 150QJ20-232/25 | 30 | 22 | 46 | 16m3/281m | 20m3/232m | 25m3/157m | |||
| 1000m3 | 24 | R150-ES-02* | 150QJ32-20/2 | 4 | 3 | 8 | 20m3/26m | 32m3/20m | 38m3/14m | 76mm 3"G | 150 |
| 25 | R150-ES-03* | 150QJ32-31/3 | 5.5 | 4 | 10 | 20m3/40m | 32m3/31m | 38m3/21m | |||
| 26 | R150-ES-04 | 150QJ32-42/4 | 7.5 | 5.5 | 13 | 20m3/53m | 32m3/42m | 38m3/33m | |||
| 27 | R150-ES-05 | 150QJ32-51/5 | 10 | 7.5 | 17 | 20m3/65m | 32m3/51m | 38m3/40m | |||
| 28 | R150-ES-06 | 150QJ32-60/6 | 10 | 7.5 | 17 | 20m3/78m | 32m3/60m | 38m3/48m | |||
| 29 | R150-ES-07 | 150QJ32-75/7 | 12.5 | 9.2 | 21 | 20m3/95m | 32m3/75m | 38m3/63m | |||
| 30 | R150-ES-08 | 150QJ32-86/8 | 15 | 11 | 24 | 20m3/108m | 32m3/86m | 38m3/72m | |||
| 31 | R150-ES-09 | 150QJ32-98/9 | 18.5 | 13 | 28 | 20m3/123m | 32m3/98m | 38m3/82m | |||
| 32 | R150-ES-10 | 150QJ32-108/10 | 20 | 15 | 32 | 20m3/131m | 32m3/108m | 38m3/91m | |||
| 33 | R150-ES-11 | 150QJ32-125/11 | 25 | 18.5 | 40 | 20m3/152m | 32m3/125m | 38m3/100m | |||
| 34 | R150-ES-13 | 150QJ32-141/13 | 25 | 18.5 | 40 | 20m3/175m | 32m3/141m | 38m3/109m | |||
| 35 | R150-ES-15 | 150QJ32-153/15 | 30 | 22 | 46 | 20m3/208m | 32m3/153m | 38m3/123m | |||
| 36 | R150-ES-18 | 150QJ32-185/18 | 35 | 26 | 54 | 20m3/248m | 32m3/185m | 38m3/148m | |||
| 37 | R150-ES-21 | 150QJ32-215/21 | 40 | 30 | 62 | 20m3/290m | 32m3/215m | 38m3/168m | |||
| 38 | R150-ES-26 | 150QJ32-265/26 | 50 | 37 | 80 | 20m3/340m | 32m3/265m | 38m3/183m | |||
| m3/24h | NO. | Model | Asia Type | Motor Moteur | Three-Phase | Capacity | Outlet | Well diameter | |||
| HP | KW | A | m3/h | mm | mm | ||||||
| 400m3 | 1 | R150-BS-02* | 150QJ12-25/2 | 2 | 1.5 | 4.4 | 8m3/30m | 12m3/25m | 16m3/18m | 65mm 2"1/2G | 150 |
| 2 | R150-BS-03* | 150QJ12-38/3 | 3 | 2.2 | 5.6 | 8m3/45m | 12m3/38m | 16m3/27m | |||
| 3 | R150-BS-04* | 150QJ12-51/4 | 4 | 3 | 8 | 8m3/60m | 12m3/51m | 16m3/36m | |||
| 4 | R150-BS-06* | 150QJ12-76/6 | 5.5 | 4 | 10 | 8m3/89m | 12m3/76m | 16m3/54m | |||
| 5 | R150-BS-08 | 150QJ12-102/8 | 7.5 | 5.5 | 13 | 8m3/119m | 12m3/102m | 16m3/72m | |||
| 6 | R150-BS-11 | 150QJ12-140/11 | 10 | 7.5 | 17 | 8m3/164m | 12m3/140m | 16m3/100m | |||
| 7 | R150-BS-14 | 150QJ12-178/14 | 12.5 | 9.2 | 21 | 8m3/209m | 12m3/178m | 16m3/127m | |||
| 8 | R150-BS-16 | 150QJ12-205/16 | 15 | 11 | 24 | 8m3/239m | 12m3/205m | 16m3/145m | |||
| 9 | R150-BS-19 | 150QJ12-243/19 | 18.5 | 13 | 28 | 8m3/283m | 12m3/243m | 16m3/172m | |||
| 10 | R150-BS-21 | 150QJ12-268/21 | 20 | 15 | 32 | 8m3/313m | 12m3/268m | 16m3/190m | |||
| 11 | R150-BS-23 | 150QJ12-293/23 | 25 | 18.5 | 40 | 8m3/343m | 12m3/293m | 16m3/208m | |||
| 600m3 | 12 | R150-DS-03* | 150QJ20-28/3 | 4 | 3 | 8 | 16m3/34m | 20m3/28m | 25m3/19m | 65mm 2"1/2G | 150 |
| 13 | R150-DS-04* | 150QJ20-37/4 | 5.5 | 4 | 10 | 16m3/45m | 20m3/37m | 25m3/25m | |||
| 14 | R150-DS-05* | 150QJ20-46/5 | 5.5 | 4 | 10 | 16m3/56m | 20m3/46m | 25m3/31m | |||
| 15 | R150-DS-07 | 150QJ20-65/7 | 7.5 | 5.5 | 13 | 16m3/79m | 20m3/65m | 25m3/44m | |||
| 16 | R150-DS-09 | 150QJ20-84/9 | 10 | 7.5 | 17 | 16m3/101m | 20m3/84m | 25m3/56m | |||
| 17 | R150-DS-11 | 150QJ20-102/11 | 12.5 | 9.2 | 21 | 16m3/124m | 20m3/102m | 25m3/69m | |||
| 18 | R150-DS-14 | 150QJ20-130/14 | 15 | 11 | 24 | 16m3/157m | 20m3/130m | 25m3/88m | |||
| 19 | R150-DS-16 | 150QJ20-149/16 | 18.5 | 13 | 28 | 16m3/180m | 20m3/149m | 25m3/100m | |||
| 20 | R150-DS-18 | 150QJ20-167/18 | 20 | 15 | 32 | 16m3/202m | 20m3/167m | 25m3/113m | |||
| 21 | R150-DS-20 | 150QJ20-186/20 | 25 | 18.5 | 40 | 16m3/225m | 20m3/186m | 25m3/125m | |||
| 22 | R150-DS-22 | 150QJ20-204/22 | 25 | 18.5 | 40 | 16m3/247m | 20m3/204m | 25m3/138m | |||
| 23 | R150-DS-25 | 150QJ20-232/25 | 30 | 22 | 46 | 16m3/281m | 20m3/232m | 25m3/157m | |||
| 1000m3 | 24 | R150-ES-02* | 150QJ32-20/2 | 4 | 3 | 8 | 20m3/26m | 32m3/20m | 38m3/14m | 76mm 3"G | 150 |
| 25 | R150-ES-03* | 150QJ32-31/3 | 5.5 | 4 | 10 | 20m3/40m | 32m3/31m | 38m3/21m | |||
| 26 | R150-ES-04 | 150QJ32-42/4 | 7.5 | 5.5 | 13 | 20m3/53m | 32m3/42m | 38m3/33m | |||
| 27 | R150-ES-05 | 150QJ32-51/5 | 10 | 7.5 | 17 | 20m3/65m | 32m3/51m | 38m3/40m | |||
| 28 | R150-ES-06 | 150QJ32-60/6 | 10 | 7.5 | 17 | 20m3/78m | 32m3/60m | 38m3/48m | |||
| 29 | R150-ES-07 | 150QJ32-75/7 | 12.5 | 9.2 | 21 | 20m3/95m | 32m3/75m | 38m3/63m | |||
| 30 | R150-ES-08 | 150QJ32-86/8 | 15 | 11 | 24 | 20m3/108m | 32m3/86m | 38m3/72m | |||
| 31 | R150-ES-09 | 150QJ32-98/9 | 18.5 | 13 | 28 | 20m3/123m | 32m3/98m | 38m3/82m | |||
| 32 | R150-ES-10 | 150QJ32-108/10 | 20 | 15 | 32 | 20m3/131m | 32m3/108m | 38m3/91m | |||
| 33 | R150-ES-11 | 150QJ32-125/11 | 25 | 18.5 | 40 | 20m3/152m | 32m3/125m | 38m3/100m | |||
| 34 | R150-ES-13 | 150QJ32-141/13 | 25 | 18.5 | 40 | 20m3/175m | 32m3/141m | 38m3/109m | |||
| 35 | R150-ES-15 | 150QJ32-153/15 | 30 | 22 | 46 | 20m3/208m | 32m3/153m | 38m3/123m | |||
| 36 | R150-ES-18 | 150QJ32-185/18 | 35 | 26 | 54 | 20m3/248m | 32m3/185m | 38m3/148m | |||
| 37 | R150-ES-21 | 150QJ32-215/21 | 40 | 30 | 62 | 20m3/290m | 32m3/215m | 38m3/168m | |||
| 38 | R150-ES-26 | 150QJ32-265/26 | 50 | 37 | 80 | 20m3/340m | 32m3/265m | 38m3/183m | |||
| m3/24h | NO. | Model | Asia Type | Motor Moteur | Three-Phase | Capacity | Outlet | Well diameter | |||
| HP | KW | A | m3/h | mm | mm | ||||||
| 400m3 | 1 | R150-BS-02* | 150QJ12-25/2 | 2 | 1.5 | 4.4 | 8m3/30m | 12m3/25m | 16m3/18m | 65mm 2"1/2G | 150 |
| 2 | R150-BS-03* | 150QJ12-38/3 | 3 | 2.2 | 5.6 | 8m3/45m | 12m3/38m | 16m3/27m | |||
| 3 | R150-BS-04* | 150QJ12-51/4 | 4 | 3 | 8 | 8m3/60m | 12m3/51m | 16m3/36m | |||
| 4 | R150-BS-06* | 150QJ12-76/6 | 5.5 | 4 | 10 | 8m3/89m | 12m3/76m | 16m3/54m | |||
| 5 | R150-BS-08 | 150QJ12-102/8 | 7.5 | 5.5 | 13 | 8m3/119m | 12m3/102m | 16m3/72m | |||
| 6 | R150-BS-11 | 150QJ12-140/11 | 10 | 7.5 | 17 | 8m3/164m | 12m3/140m | 16m3/100m | |||
| 7 | R150-BS-14 | 150QJ12-178/14 | 12.5 | 9.2 | 21 | 8m3/209m | 12m3/178m | 16m3/127m | |||
| 8 | R150-BS-16 | 150QJ12-205/16 | 15 | 11 | 24 | 8m3/239m | 12m3/205m | 16m3/145m | |||
| 9 | R150-BS-19 | 150QJ12-243/19 | 18.5 | 13 | 28 | 8m3/283m | 12m3/243m | 16m3/172m | |||
| 10 | R150-BS-21 | 150QJ12-268/21 | 20 | 15 | 32 | 8m3/313m | 12m3/268m | 16m3/190m | |||
| 11 | R150-BS-23 | 150QJ12-293/23 | 25 | 18.5 | 40 | 8m3/343m | 12m3/293m | 16m3/208m | |||
| 600m3 | 12 | R150-DS-03* | 150QJ20-28/3 | 4 | 3 | 8 | 16m3/34m | 20m3/28m | 25m3/19m | 65mm 2"1/2G | 150 |
| 13 | R150-DS-04* | 150QJ20-37/4 | 5.5 | 4 | 10 | 16m3/45m | 20m3/37m | 25m3/25m | |||
| 14 | R150-DS-05* | 150QJ20-46/5 | 5.5 | 4 | 10 | 16m3/56m | 20m3/46m | 25m3/31m | |||
| 15 | R150-DS-07 | 150QJ20-65/7 | 7.5 | 5.5 | 13 | 16m3/79m | 20m3/65m | 25m3/44m | |||
| 16 | R150-DS-09 | 150QJ20-84/9 | 10 | 7.5 | 17 | 16m3/101m | 20m3/84m | 25m3/56m | |||
| 17 | R150-DS-11 | 150QJ20-102/11 | 12.5 | 9.2 | 21 | 16m3/124m | 20m3/102m | 25m3/69m | |||
| 18 | R150-DS-14 | 150QJ20-130/14 | 15 | 11 | 24 | 16m3/157m | 20m3/130m | 25m3/88m | |||
| 19 | R150-DS-16 | 150QJ20-149/16 | 18.5 | 13 | 28 | 16m3/180m | 20m3/149m | 25m3/100m | |||
| 20 | R150-DS-18 | 150QJ20-167/18 | 20 | 15 | 32 | 16m3/202m | 20m3/167m | 25m3/113m | |||
| 21 | R150-DS-20 | 150QJ20-186/20 | 25 | 18.5 | 40 | 16m3/225m | 20m3/186m | 25m3/125m | |||
| 22 | R150-DS-22 | 150QJ20-204/22 | 25 | 18.5 | 40 | 16m3/247m | 20m3/204m | 25m3/138m | |||
| 23 | R150-DS-25 | 150QJ20-232/25 | 30 | 22 | 46 | 16m3/281m | 20m3/232m | 25m3/157m | |||
| 1000m3 | 24 | R150-ES-02* | 150QJ32-20/2 | 4 | 3 | 8 | 20m3/26m | 32m3/20m | 38m3/14m | 76mm 3"G | 150 |
| 25 | R150-ES-03* | 150QJ32-31/3 | 5.5 | 4 | 10 | 20m3/40m | 32m3/31m | 38m3/21m | |||
| 26 | R150-ES-04 | 150QJ32-42/4 | 7.5 | 5.5 | 13 | 20m3/53m | 32m3/42m | 38m3/33m | |||
| 27 | R150-ES-05 | 150QJ32-51/5 | 10 | 7.5 | 17 | 20m3/65m | 32m3/51m | 38m3/40m | |||
| 28 | R150-ES-06 | 150QJ32-60/6 | 10 | 7.5 | 17 | 20m3/78m | 32m3/60m | 38m3/48m | |||
| 29 | R150-ES-07 | 150QJ32-75/7 | 12.5 | 9.2 | 21 | 20m3/95m | 32m3/75m | 38m3/63m | |||
| 30 | R150-ES-08 | 150QJ32-86/8 | 15 | 11 | 24 | 20m3/108m | 32m3/86m | 38m3/72m | |||
| 31 | R150-ES-09 | 150QJ32-98/9 | 18.5 | 13 | 28 | 20m3/123m | 32m3/98m | 38m3/82m | |||
| 32 | R150-ES-10 | 150QJ32-108/10 | 20 | 15 | 32 | 20m3/131m | 32m3/108m | 38m3/91m | |||
| 33 | R150-ES-11 | 150QJ32-125/11 | 25 | 18.5 | 40 | 20m3/152m | 32m3/125m | 38m3/100m | |||
| 34 | R150-ES-13 | 150QJ32-141/13 | 25 | 18.5 | 40 | 20m3/175m | 32m3/141m | 38m3/109m | |||
| 35 | R150-ES-15 | 150QJ32-153/15 | 30 | 22 | 46 | 20m3/208m | 32m3/153m | 38m3/123m | |||
| 36 | R150-ES-18 | 150QJ32-185/18 | 35 | 26 | 54 | 20m3/248m | 32m3/185m | 38m3/148m | |||
| 37 | R150-ES-21 | 150QJ32-215/21 | 40 | 30 | 62 | 20m3/290m | 32m3/215m | 38m3/168m | |||
| 38 | R150-ES-26 | 150QJ32-265/26 | 50 | 37 | 80 | 20m3/340m | 32m3/265m | 38m3/183m | |||
| m3/24h | NO. | Model | Asia Type | Motor Moteur | Three-Phase | Capacity | Outlet | Well diameter | |||
| HP | KW | A | m3/h | mm | mm | ||||||
| 400m3 | 1 | R150-BS-02* | 150QJ12-25/2 | 2 | 1.5 | 4.4 | 8m3/30m | 12m3/25m | 16m3/18m | 65mm 2"1/2G | 150 |
| 2 | R150-BS-03* | 150QJ12-38/3 | 3 | 2.2 | 5.6 | 8m3/45m | 12m3/38m | 16m3/27m | |||
| 3 | R150-BS-04* | 150QJ12-51/4 | 4 | 3 | 8 | 8m3/60m | 12m3/51m | 16m3/36m | |||
| 4 | R150-BS-06* | 150QJ12-76/6 | 5.5 | 4 | 10 | 8m3/89m | 12m3/76m | 16m3/54m | |||
| 5 | R150-BS-08 | 150QJ12-102/8 | 7.5 | 5.5 | 13 | 8m3/119m | 12m3/102m | 16m3/72m | |||
| 6 | R150-BS-11 | 150QJ12-140/11 | 10 | 7.5 | 17 | 8m3/164m | 12m3/140m | 16m3/100m | |||
| 7 | R150-BS-14 | 150QJ12-178/14 | 12.5 | 9.2 | 21 | 8m3/209m | 12m3/178m | 16m3/127m | |||
| 8 | R150-BS-16 | 150QJ12-205/16 | 15 | 11 | 24 | 8m3/239m | 12m3/205m | 16m3/145m | |||
| 9 | R150-BS-19 | 150QJ12-243/19 | 18.5 | 13 | 28 | 8m3/283m | 12m3/243m | 16m3/172m | |||
| 10 | R150-BS-21 | 150QJ12-268/21 | 20 | 15 | 32 | 8m3/313m | 12m3/268m | 16m3/190m | |||
| 11 | R150-BS-23 | 150QJ12-293/23 | 25 | 18.5 | 40 | 8m3/343m | 12m3/293m | 16m3/208m | |||
| 600m3 | 12 | R150-DS-03* | 150QJ20-28/3 | 4 | 3 | 8 | 16m3/34m | 20m3/28m | 25m3/19m | 65mm 2"1/2G | 150 |
| 13 | R150-DS-04* | 150QJ20-37/4 | 5.5 | 4 | 10 | 16m3/45m | 20m3/37m | 25m3/25m | |||
| 14 | R150-DS-05* | 150QJ20-46/5 | 5.5 | 4 | 10 | 16m3/56m | 20m3/46m | 25m3/31m | |||
| 15 | R150-DS-07 | 150QJ20-65/7 | 7.5 | 5.5 | 13 | 16m3/79m | 20m3/65m | 25m3/44m | |||
| 16 | R150-DS-09 | 150QJ20-84/9 | 10 | 7.5 | 17 | 16m3/101m | 20m3/84m | 25m3/56m | |||
| 17 | R150-DS-11 | 150QJ20-102/11 | 12.5 | 9.2 | 21 | 16m3/124m | 20m3/102m | 25m3/69m | |||
| 18 | R150-DS-14 | 150QJ20-130/14 | 15 | 11 | 24 | 16m3/157m | 20m3/130m | 25m3/88m | |||
| 19 | R150-DS-16 | 150QJ20-149/16 | 18.5 | 13 | 28 | 16m3/180m | 20m3/149m | 25m3/100m | |||
| 20 | R150-DS-18 | 150QJ20-167/18 | 20 | 15 | 32 | 16m3/202m | 20m3/167m | 25m3/113m | |||
| 21 | R150-DS-20 | 150QJ20-186/20 | 25 | 18.5 | 40 | 16m3/225m | 20m3/186m | 25m3/125m | |||
| 22 | R150-DS-22 | 150QJ20-204/22 | 25 | 18.5 | 40 | 16m3/247m | 20m3/204m | 25m3/138m | |||
| 23 | R150-DS-25 | 150QJ20-232/25 | 30 | 22 | 46 | 16m3/281m | 20m3/232m | 25m3/157m | |||
| 1000m3 | 24 | R150-ES-02* | 150QJ32-20/2 | 4 | 3 | 8 | 20m3/26m | 32m3/20m | 38m3/14m | 76mm 3"G | 150 |
| 25 | R150-ES-03* | 150QJ32-31/3 | 5.5 | 4 | 10 | 20m3/40m | 32m3/31m | 38m3/21m | |||
| 26 | R150-ES-04 | 150QJ32-42/4 | 7.5 | 5.5 | 13 | 20m3/53m | 32m3/42m | 38m3/33m | |||
| 27 | R150-ES-05 | 150QJ32-51/5 | 10 | 7.5 | 17 | 20m3/65m | 32m3/51m | 38m3/40m | |||
| 28 | R150-ES-06 | 150QJ32-60/6 | 10 | 7.5 | 17 | 20m3/78m | 32m3/60m | 38m3/48m | |||
| 29 | R150-ES-07 | 150QJ32-75/7 | 12.5 | 9.2 | 21 | 20m3/95m | 32m3/75m | 38m3/63m | |||
| 30 | R150-ES-08 | 150QJ32-86/8 | 15 | 11 | 24 | 20m3/108m | 32m3/86m | 38m3/72m | |||
| 31 | R150-ES-09 | 150QJ32-98/9 | 18.5 | 13 | 28 | 20m3/123m | 32m3/98m | 38m3/82m | |||
| 32 | R150-ES-10 | 150QJ32-108/10 | 20 | 15 | 32 | 20m3/131m | 32m3/108m | 38m3/91m | |||
| 33 | R150-ES-11 | 150QJ32-125/11 | 25 | 18.5 | 40 | 20m3/152m | 32m3/125m | 38m3/100m | |||
| 34 | R150-ES-13 | 150QJ32-141/13 | 25 | 18.5 | 40 | 20m3/175m | 32m3/141m | 38m3/109m | |||
| 35 | R150-ES-15 | 150QJ32-153/15 | 30 | 22 | 46 | 20m3/208m | 32m3/153m | 38m3/123m | |||
| 36 | R150-ES-18 | 150QJ32-185/18 | 35 | 26 | 54 | 20m3/248m | 32m3/185m | 38m3/148m | |||
| 37 | R150-ES-21 | 150QJ32-215/21 | 40 | 30 | 62 | 20m3/290m | 32m3/215m | 38m3/168m | |||
| 38 | R150-ES-26 | 150QJ32-265/26 | 50 | 37 | 80 | 20m3/340m | 32m3/265m | 38m3/183m | |||
| m3/24h | NO. | Model | Asia Type | Motor Moteur | Three-Phase | Capacity | Flanged Outlet | Well diameter | |
| HP | KW | A | m3/h | mm | mm | ||||
| 800m3 | 1 | R200-Fe-32-02* | 200-QJ32-26/2 | 5.5 | 4 | 10 | 32m3/26m | 125mm 5"G | 250 |
| 2 | R200-Fe-32-03* | 200-QJ32-39/3 | 7.5 | 5.5 | 12.3 | 32m3/39m | |||
| 3 | R200-Fe-32-04* | 200-QJ32-52/4 | 10 | 7.5 | 17 | 32m3/52m | |||
| 4 | R200-Fe-32-06* | 200-QJ32-78/6 | 15 | 11 | 24 | 32m3/78m | |||
| 5 | R200-Fe-32-07* | 200-QJ32-91/7 | 18 | 13 | 28 | 32m3/91m | |||
| 6 | R200-Fe-32-08* | 200-QJ32-104/8 | 20 | 15 | 32 | 32m3/104m | |||
| 7 | R200-Fe-32-10* | 200-QJ32-130/10 | 25 | 18.5 | 38.2 | 32m3/130m | |||
| 8 | R200-Fe-32-11 | 200-QJ32-143/11 | 30 | 22 | 48.2 | 32m3/143m | |||
| 9 | R200-Fe-32-13 | 200-QJ32-169/13 | 35 | 26 | 54.5 | 32m3/169m | |||
| 10 | R200-Fe-32-15 | 200-QJ32-195/15 | 40 | 30 | 64.6 | 32m3/195m | |||
| 11 | R200-Fe-32-19 | 200-QJ32-247/19 | 50 | 37 | 79.7 | 32m3/247m | |||
| 12 | R200-Fe-32-23 | 200-QJ32-299/23 | 60 | 45 | 94.6 | 32m3/299m | |||
| 1000m3 | 13 | R200-Fe-40-02* | 200-QJ40-26/2 | 7.5 | 5.5 | 12.3 | 40m3/26m | 125mm 5"G | |
| 14 | R200-Fe-40-03* | 200-QJ40-39/3 | 10 | 7.5 | 17 | 40m3/39m | |||
| 15 | R200-Fe-40-04* | 200-QJ40-52/4 | 12.5 | 9.2 | 20.2 | 40m3/52m | |||
| 16 | R200-Fe-40-05* | 200-QJ40-65/5 | 15 | 11 | 24 | 40m3/65m | |||
| 17 | R200-Fe-40-06* | 200-QJ40-78/6 | 20 | 15 | 32 | 40m3/78m | |||
| 18 | R200-Fe-40-08* | 200-QJ40-104/8 | 25 | 18.5 | 38.2 | 40m3/104m | |||
| 19 | R200-Fe-40-09 | 200-QJ40-117/9 | 30 | 22 | 48.2 | 40m3/117m | |||
| 20 | R200-Fe-40-11 | 200-QJ40-143/11 | 35 | 26 | 54.5 | 40m3/143m | |||
| 21 | R200-Fe-40-13 | 200-QJ40-169/13 | 40 | 30 | 64.6 | 40m3/169m | |||
| 22 | R200-Fe-40-16 | 200-QJ40-208/16 | 50 | 37 | 79.7 | 40m3/208m | |||
| 23 | R200-Fe-40-19 | 200-QJ40-247/19 | 60 | 45 | 94.6 | 40m3/247m | |||
| 1300m3 | 24 | R200-Fe-50-02* | 200-QJ50-26/2 | 7.5 | 5.5 | 12.3 | 50m3/26m | 125mm 5"G | |
| 25 | R200-Fe-50-03* | 200-QJ50-39/3 | 12.5 | 9.2 | 20.2 | 50m3/39m | |||
| 26 | R200-Fe-50-04* | 200-QJ50-52/4 | 15 | 11 | 24 | 50m3/52m | |||
| 27 | R200-Fe-50-05* | 200-QJ50-65/5 | 20 | 15 | 32 | 50m3/65m | |||
| 28 | R200-Fe-50-06* | 200-QJ50-78/6 | 25 | 18.5 | 38.2 | 50m3/78m | |||
| 29 | R200-Fe-50-07 | 200-QJ50-91/7 | 30 | 22 | 48.2 | 50m3/91m | |||
| 30 | R200-Fe-50-08 | 200-QJ50-104/8 | 35 | 26 | 54.5 | 50m3/104m | |||
| 31 | R200-Fe-50-10 | 200-QJ50-130/10 | 40 | 30 | 64.6 | 50m3/130m | |||
| 32 | R200-Fe-50-12 | 200-QJ50-156/12 | 50 | 37 | 79.7 | 50m3/156m | |||
| 33 | R200-Fe-50-16 | 200-QJ50-208/16 | 60 | 45 | 94.6 | 50m3/208m | |||
| 1500m3 | 34 | R200-Fe-63-02* | 200-QJ63-24/2 | 10 | 7.5 | 17 | 63m3/24m | 125mm 5"G | |
| 35 | R200-Fe-63-03* | 200-QJ63-36/3 | 15 | 11 | 24 | 63m3/36m | |||
| 36 | R200-Fe-63-05* | 200-QJ63-60/5 | 25 | 18.5 | 38.2 | 63m3/60m | |||
| 37 | R200-Fe-63-06 | 200-QJ63-72/6 | 30 | 22 | 48.2 | 63m3/72m | |||
| 38 | R200-Fe-63-07 | 200-QJ63-84/7 | 35 | 26 | 54.5 | 63m3/84m | |||
| 39 | R200-Fe-63-08 | 200-QJ63-96/8 | 40 | 30 | 64.6 | 63m3/96m | |||
| 40 | R200-Fe-63-10 | 200-QJ63-120/10 | 50 | 37 | 79.7 | 63m3/120m | |||
| 41 | R200-Fe-63-12 | 200-QJ63-144/12 | 60 | 45 | 94.6 | 63m3/144m | |||
| 2000m3 | 42 | R200-Fe-80-02* | 200-QJ80-22/2 | 10 | 7.5 | 17 | 80m3/22m | 125mm 5"G | |
| 43 | R200-Fe-80-03* | 200-QJ80-33/3 | 15 | 11 | 24 | 80m3/33m | |||
| 44 | R200-Fe-80-04* | 200-QJ80-44/4 | 20 | 15 | 32 | 80m3/44m | |||
| 45 | R200-Fe-80-05* | 200-QJ80-55/5 | 25 | 18.5 | 38.2 | 80m3/55m | |||
| 46 | R200-Fe-80-06 | 200-QJ80-66/6 | 30 | 22 | 48.2 | 80m3/66m | |||
| 47 | R200-Fe-80-08 | 200-QJ80-88/8 | 40 | 30 | 64.6 | 80m3/88m | |||
| 48 | R200-Fe-80-09 | 200-QJ80-99/9 | 50 | 37 | 79.7 | 80m3/99m | |||
| 49 | R200-Fe-80-11 | 200-QJ80-121/11 | 60 | 45 | 94.6 | 80m3/121m | |||
| 2500m3 | 50 | R200-Fe-100-02* | 200-QJ100-18/2 | 12.5 | 9.2 | 20.2 | 100m3/18m | 125mm 5"G | |
| 51 | R200-Fe-100-03* | 200-QJ100-27/3 | 20 | 15 | 32 | 100m3/27m | |||
| 52 | R200-Fe-100-04* | 200-QJ100-36/4 | 25 | 18.5 | 38.2 | 100m3/36m | |||
| 53 | R200-Fe-100-05 | 200-QJ100-45/5 | 30 | 22 | 48.2 | 100m3/45m | |||
| 54 | R200-Fe-100-06 | 200-QJ100-54/6 | 35 | 26 | 54.5 | 100m3/54m | |||
| 55 | R200-Fe-100-07 | 200-QJ100-63/7 | 40 | 30 | 64.6 | 100m3/63m | |||
| 56 | R200-Fe-100-08 | 200-QJ100-72/8 | 50 | 37 | 79.7 | 100m3/72m | |||
| 57 | R200-Fe-100-10 | 200-QJ100-90/10 | 60 | 45 | 94.6 | 100m3/90m | |||
| m3/24h | NO. | Model | Asia Type | Motor Moteur | Three-Phase | Capacity | Flanged Outlet | Well diameter | |
| HP | KW | A | m3/h | mm | mm | ||||
| 800m3 | 1 | R200-Fe-32-02* | 200-QJ32-26/2 | 5.5 | 4 | 10 | 32m3/26m | 125mm 5"G | 250 |
| 2 | R200-Fe-32-03* | 200-QJ32-39/3 | 7.5 | 5.5 | 12.3 | 32m3/39m | |||
| 3 | R200-Fe-32-04* | 200-QJ32-52/4 | 10 | 7.5 | 17 | 32m3/52m | |||
| 4 | R200-Fe-32-06* | 200-QJ32-78/6 | 15 | 11 | 24 | 32m3/78m | |||
| 5 | R200-Fe-32-07* | 200-QJ32-91/7 | 18 | 13 | 28 | 32m3/91m | |||
| 6 | R200-Fe-32-08* | 200-QJ32-104/8 | 20 | 15 | 32 | 32m3/104m | |||
| 7 | R200-Fe-32-10* | 200-QJ32-130/10 | 25 | 18.5 | 38.2 | 32m3/130m | |||
| 8 | R200-Fe-32-11 | 200-QJ32-143/11 | 30 | 22 | 48.2 | 32m3/143m | |||
| 9 | R200-Fe-32-13 | 200-QJ32-169/13 | 35 | 26 | 54.5 | 32m3/169m | |||
| 10 | R200-Fe-32-15 | 200-QJ32-195/15 | 40 | 30 | 64.6 | 32m3/195m | |||
| 11 | R200-Fe-32-19 | 200-QJ32-247/19 | 50 | 37 | 79.7 | 32m3/247m | |||
| 12 | R200-Fe-32-23 | 200-QJ32-299/23 | 60 | 45 | 94.6 | 32m3/299m | |||
| 1000m3 | 13 | R200-Fe-40-02* | 200-QJ40-26/2 | 7.5 | 5.5 | 12.3 | 40m3/26m | 125mm 5"G | |
| 14 | R200-Fe-40-03* | 200-QJ40-39/3 | 10 | 7.5 | 17 | 40m3/39m | |||
| 15 | R200-Fe-40-04* | 200-QJ40-52/4 | 12.5 | 9.2 | 20.2 | 40m3/52m | |||
| 16 | R200-Fe-40-05* | 200-QJ40-65/5 | 15 | 11 | 24 | 40m3/65m | |||
| 17 | R200-Fe-40-06* | 200-QJ40-78/6 | 20 | 15 | 32 | 40m3/78m | |||
| 18 | R200-Fe-40-08* | 200-QJ40-104/8 | 25 | 18.5 | 38.2 | 40m3/104m | |||
| 19 | R200-Fe-40-09 | 200-QJ40-117/9 | 30 | 22 | 48.2 | 40m3/117m | |||
| 20 | R200-Fe-40-11 | 200-QJ40-143/11 | 35 | 26 | 54.5 | 40m3/143m | |||
| 21 | R200-Fe-40-13 | 200-QJ40-169/13 | 40 | 30 | 64.6 | 40m3/169m | |||
| 22 | R200-Fe-40-16 | 200-QJ40-208/16 | 50 | 37 | 79.7 | 40m3/208m | |||
| 23 | R200-Fe-40-19 | 200-QJ40-247/19 | 60 | 45 | 94.6 | 40m3/247m | |||
| 1300m3 | 24 | R200-Fe-50-02* | 200-QJ50-26/2 | 7.5 | 5.5 | 12.3 | 50m3/26m | 125mm 5"G | |
| 25 | R200-Fe-50-03* | 200-QJ50-39/3 | 12.5 | 9.2 | 20.2 | 50m3/39m | |||
| 26 | R200-Fe-50-04* | 200-QJ50-52/4 | 15 | 11 | 24 | 50m3/52m | |||
| 27 | R200-Fe-50-05* | 200-QJ50-65/5 | 20 | 15 | 32 | 50m3/65m | |||
| 28 | R200-Fe-50-06* | 200-QJ50-78/6 | 25 | 18.5 | 38.2 | 50m3/78m | |||
| 29 | R200-Fe-50-07 | 200-QJ50-91/7 | 30 | 22 | 48.2 | 50m3/91m | |||
| 30 | R200-Fe-50-08 | 200-QJ50-104/8 | 35 | 26 | 54.5 | 50m3/104m | |||
| 31 | R200-Fe-50-10 | 200-QJ50-130/10 | 40 | 30 | 64.6 | 50m3/130m | |||
| 32 | R200-Fe-50-12 | 200-QJ50-156/12 | 50 | 37 | 79.7 | 50m3/156m | |||
| 33 | R200-Fe-50-16 | 200-QJ50-208/16 | 60 | 45 | 94.6 | 50m3/208m | |||
| 1500m3 | 34 | R200-Fe-63-02* | 200-QJ63-24/2 | 10 | 7.5 | 17 | 63m3/24m | 125mm 5"G | |
| 35 | R200-Fe-63-03* | 200-QJ63-36/3 | 15 | 11 | 24 | 63m3/36m | |||
| 36 | R200-Fe-63-05* | 200-QJ63-60/5 | 25 | 18.5 | 38.2 | 63m3/60m | |||
| 37 | R200-Fe-63-06 | 200-QJ63-72/6 | 30 | 22 | 48.2 | 63m3/72m | |||
| 38 | R200-Fe-63-07 | 200-QJ63-84/7 | 35 | 26 | 54.5 | 63m3/84m | |||
| 39 | R200-Fe-63-08 | 200-QJ63-96/8 | 40 | 30 | 64.6 | 63m3/96m | |||
| 40 | R200-Fe-63-10 | 200-QJ63-120/10 | 50 | 37 | 79.7 | 63m3/120m | |||
| 41 | R200-Fe-63-12 | 200-QJ63-144/12 | 60 | 45 | 94.6 | 63m3/144m | |||
| 2000m3 | 42 | R200-Fe-80-02* | 200-QJ80-22/2 | 10 | 7.5 | 17 | 80m3/22m | 125mm 5"G | |
| 43 | R200-Fe-80-03* | 200-QJ80-33/3 | 15 | 11 | 24 | 80m3/33m | |||
| 44 | R200-Fe-80-04* | 200-QJ80-44/4 | 20 | 15 | 32 | 80m3/44m | |||
| 45 | R200-Fe-80-05* | 200-QJ80-55/5 | 25 | 18.5 | 38.2 | 80m3/55m | |||
| 46 | R200-Fe-80-06 | 200-QJ80-66/6 | 30 | 22 | 48.2 | 80m3/66m | |||
| 47 | R200-Fe-80-08 | 200-QJ80-88/8 | 40 | 30 | 64.6 | 80m3/88m | |||
| 48 | R200-Fe-80-09 | 200-QJ80-99/9 | 50 | 37 | 79.7 | 80m3/99m | |||
| 49 | R200-Fe-80-11 | 200-QJ80-121/11 | 60 | 45 | 94.6 | 80m3/121m | |||
| 2500m3 | 50 | R200-Fe-100-02* | 200-QJ100-18/2 | 12.5 | 9.2 | 20.2 | 100m3/18m | 125mm 5"G | |
| 51 | R200-Fe-100-03* | 200-QJ100-27/3 | 20 | 15 | 32 | 100m3/27m | |||
| 52 | R200-Fe-100-04* | 200-QJ100-36/4 | 25 | 18.5 | 38.2 | 100m3/36m | |||
| 53 | R200-Fe-100-05 | 200-QJ100-45/5 | 30 | 22 | 48.2 | 100m3/45m | |||
| 54 | R200-Fe-100-06 | 200-QJ100-54/6 | 35 | 26 | 54.5 | 100m3/54m | |||
| 55 | R200-Fe-100-07 | 200-QJ100-63/7 | 40 | 30 | 64.6 | 100m3/63m | |||
| 56 | R200-Fe-100-08 | 200-QJ100-72/8 | 50 | 37 | 79.7 | 100m3/72m | |||
| 57 | R200-Fe-100-10 | 200-QJ100-90/10 | 60 | 45 | 94.6 | 100m3/90m | |||
During the daily use of the self-priming pump, there will be some more common problems. For example, the self-priming pump's non-pumping problem will be caused by many different reasons, so how do we deal with these problems is the key. The reasons why the self-priming pump does not pump water include the following aspects.
The hot water submersible pump is used for hot spring bathing, and can also be used for extracting groundwater from deep wells, and can also be used for water lifting projects such as rivers, reservoirs, and canals. It is mainly used for farmland irrigation and human and animal water in high mountain areas. It can also be used for central air conditioning cooling, heat pump units, cold pump units, cities, factories, railways, mines, and construction site drainage. The general flow rate can reach 5~650m³/h, and the head can reach 10-550 meters.
Diaphragm pump is a new type of conveying machinery that can convey various corrosive liquids, liquids with particles, high viscosity, volatile, flammable, and highly toxic liquids. Diaphragm pump has four materials: plastic, aluminum alloy, cast iron, stainless steel.
