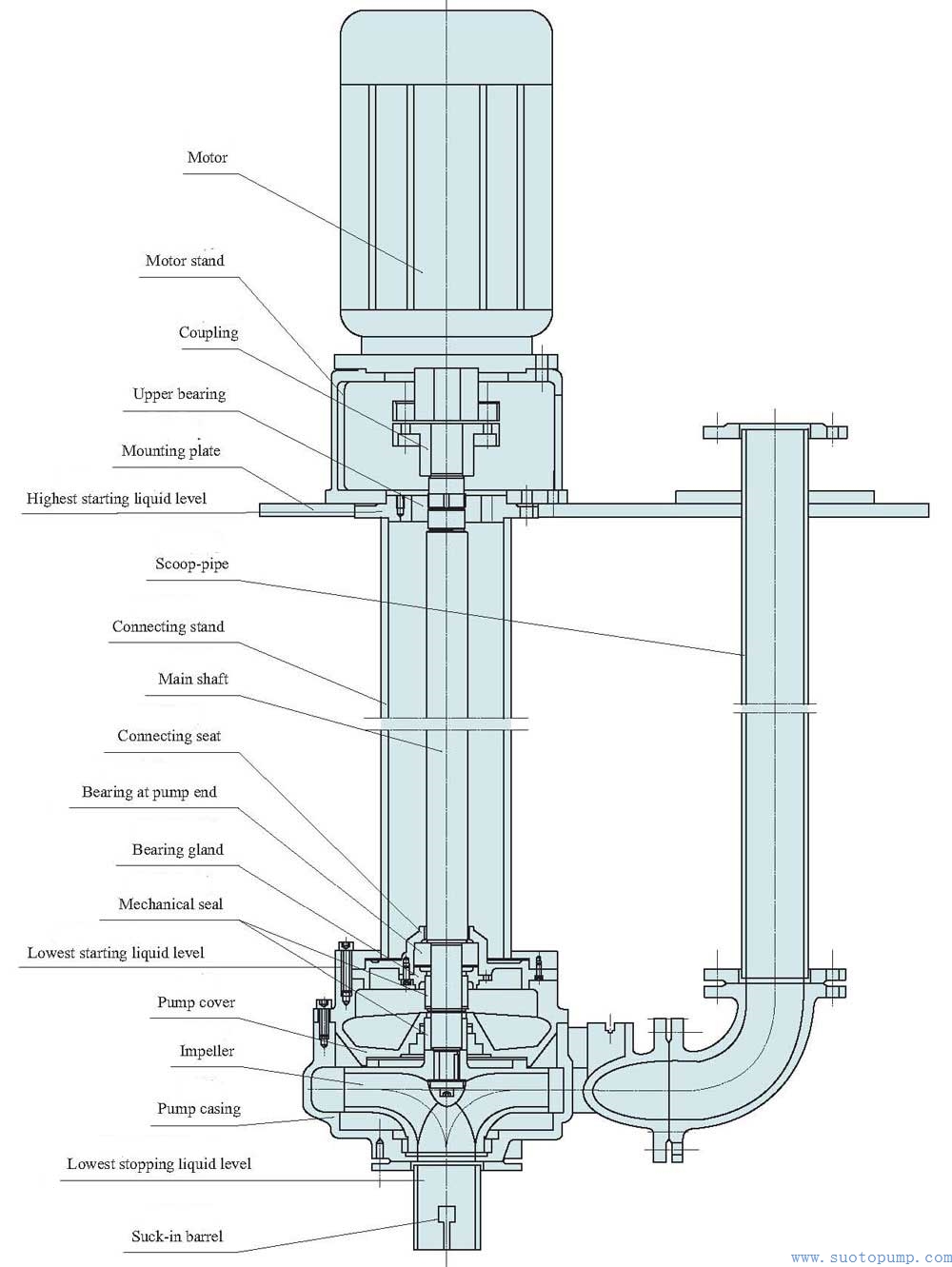

This series of pumps adopt unique structure of impeller and new type double mechanical seal, can effectively conveying liquids containing solids and short fiber. Compared with the traditional impeller, the pump impeller is with big channel, have very good flow passing ability, match with reasonable volute chamber, make the pump with high efficiency, no vibration.
Advantages
1. Adopt big flow non-clog design, improving the ability to pass dirty things greatly.
2. The design is rational, with high efficiency, and the energy-saving is remarkable.
3. Adopts in series mechanical seal, the material is the wear-resisting carbonization tungsten, featuring being durable, wear-resisting, can running for more than 8000 hours continuously safely.
4. The installation is simple and convenient, the pump is submerged into the water, no need to build the pump house, reduce construction cost greatly.
5. Can be equipped with control box according to the needs of user, it will start or stop the pump automatically according to the change of liquid level, it is more convinient to use.
6. Motor shaft can be 0.5~4 m.
Applications
1, factory severely-polluted sewage discharge.
2, the urban sewage treatment plants drainage system.
3, residential area sewage drainage.
4, hospital, hotel sewage disposal.
5, municipal engineering and construction site.
6, exploration and mining.
7, rural digester irrigation.
This series of pumps adopt unique structure of impeller and new type double mechanical seal, can effectively conveying liquids containing solids and short fiber. Compared with the traditional impeller, the pump impeller is with big channel, have very good flow passing ability, match with reasonable volute chamber, make the pump with high efficiency, no vibration.
Advantages
1. Adopt big flow non-clog design, improving the ability to pass dirty things greatly.
2. The design is rational, with high efficiency, and the energy-saving is remarkable.
3. Adopts in series mechanical seal, the material is the wear-resisting carbonization tungsten, featuring being durable, wear-resisting, can running for more than 8000 hours continuously safely.
4. The installation is simple and convenient, the pump is submerged into the water, no need to build the pump house, reduce construction cost greatly.
5. Can be equipped with control box according to the needs of user, it will start or stop the pump automatically according to the change of liquid level, it is more convinient to use.
6. Motor shaft can be 0.5~4 m.
Applications
1, factory severely-polluted sewage discharge.
2, the urban sewage treatment plants drainage system.
3, residential area sewage drainage.
4, hospital, hotel sewage disposal.
5, municipal engineering and construction site.
6, exploration and mining.
7, rural digester irrigation.
Model | Discharge mm | Capacity m3/h | Head m | Speed r/min | Power KW | Eff. % |
40YW12-15 | 40 | 12 | 15 | 2900 | 1.5 | 48 |
50YW20-7 | 50 | 20 | 7 | 1450 | 0.75 | 62 |
50YW10-10 | 〃 | 10 | 10 | 〃 | 0.75 | 54 |
50YW15-15 | 〃 | 15 | 15 | 2900 | 1.5 | 51 |
50YW15-20 | 〃 | 15 | 20 | 〃 | 2.2 | 51 |
50YW17-25 | 〃 | 17 | 25 | 〃 | 3 | 53 |
50YW25-32 | 〃 | 25 | 32 | 〃 | 5.5 | 49 |
65YW25-15 | 65 | 25 | 15 | 〃 | 2.2 | 52 |
65YW37-13 | 〃 | 37 | 13 | 〃 | 3 | 60 |
65YW25-28 | 〃 | 25 | 28 | 〃 | 4 | 58 |
80YW40-7 | 80 | 40 | 7 | 〃 | 2.2 | 50 |
80YW29-9 | 〃 | 29 | 9 | 〃 | 2.2 | 48 |
80YW43-13 | 〃 | 43 | 13 | 〃 | 3 | 65 |
80YW40-15 | 〃 | 40 | 15 | 〃 | 4 | 57 |
80YW50-25 | 〃 | 50 | 25 | 〃 | 7.5 | 56 |
100YW80-9 | 100 | 80 | 9 | 1450 | 4 | 62 |
100YW110-10 | 〃 | 110 | 10 | 〃 | 5.5 | 97 |
100YW65-15 | 〃 | 65 | 15 | 〃 | 5.5 | 59 |
100YW100-15 | 〃 | 100 | 15 | 〃 | 7.5 | 70 |
100YW80-20 | 〃 | 80 | 20 | 〃 | 7.5 | 71 |
100YW100-22 | 〃 | 100 | 22 | 〃 | 15 | 61 |
150YW145-9 | 150 | 145 | 9 | 〃 | 7.5 | 63 |
150YW200-10 | 〃 | 200 | 10 | 〃 | 15 | 64 |
150YW160-15 | 〃 | 160 | 15 | 〃 | 15 | 67 |
150YW180-22 | 〃 | 180 | 22 | 〃 | 18.5 | 74 |
150YW150-26 | 〃 | 150 | 26 | 〃 | 18.5 | 72 |
150YW130-30 | 〃 | 130 | 30 | 〃 | 22 | 69 |
150YW200-30 | 〃 | 200 | 30 | 〃 | 37 | 65 |
150YW150-35 | 〃 | 150 | 35 | 〃 | 37 | 63 |
200YW250-11 | 200 | 250 | 11 | 〃 | 15 | 72 |
200YW250-15 | 〃 | 250 | 15 | 〃 | 18.5 | 72 |
200YW400-10 | 〃 | 400 | 10 | 〃 | 22 | 75 |
200YW310-13 | 〃 | 310 | 13 | 〃 | 22 | 71 |
200YW400-13 | 〃 | 400 | 13 | 〃 | 30 | 76 |
200YW250-22 | 〃 | 250 | 22 | 〃 | 30 | 71 |
200YW350-25 | 〃 | 350 | 25 | 〃 | 37 | 73 |
200YW250-35 | 〃 | 〃 | 35 | 〃 | 45 | 69 |
250YW600-9 | 250 | 600 | 9 | 〃 | 30 | 78 |
250YW600-12 | 〃 | 600 | 12 | 〃 | 37 | 76 |
250YW600-15 | 〃 | 600 | 15 | 〃 | 45 | 73 |
Model | Discharge mm | Capacity m3/h | Head m | Speed r/min | Power KW | Eff. % |
40YW12-15 | 40 | 12 | 15 | 2900 | 1.5 | 48 |
50YW20-7 | 50 | 20 | 7 | 1450 | 0.75 | 62 |
50YW10-10 | 〃 | 10 | 10 | 〃 | 0.75 | 54 |
50YW15-15 | 〃 | 15 | 15 | 2900 | 1.5 | 51 |
50YW15-20 | 〃 | 15 | 20 | 〃 | 2.2 | 51 |
50YW17-25 | 〃 | 17 | 25 | 〃 | 3 | 53 |
50YW25-32 | 〃 | 25 | 32 | 〃 | 5.5 | 49 |
65YW25-15 | 65 | 25 | 15 | 〃 | 2.2 | 52 |
65YW37-13 | 〃 | 37 | 13 | 〃 | 3 | 60 |
65YW25-28 | 〃 | 25 | 28 | 〃 | 4 | 58 |
80YW40-7 | 80 | 40 | 7 | 〃 | 2.2 | 50 |
80YW29-9 | 〃 | 29 | 9 | 〃 | 2.2 | 48 |
80YW43-13 | 〃 | 43 | 13 | 〃 | 3 | 65 |
80YW40-15 | 〃 | 40 | 15 | 〃 | 4 | 57 |
80YW50-25 | 〃 | 50 | 25 | 〃 | 7.5 | 56 |
100YW80-9 | 100 | 80 | 9 | 1450 | 4 | 62 |
100YW110-10 | 〃 | 110 | 10 | 〃 | 5.5 | 97 |
100YW65-15 | 〃 | 65 | 15 | 〃 | 5.5 | 59 |
100YW100-15 | 〃 | 100 | 15 | 〃 | 7.5 | 70 |
100YW80-20 | 〃 | 80 | 20 | 〃 | 7.5 | 71 |
100YW100-22 | 〃 | 100 | 22 | 〃 | 15 | 61 |
150YW145-9 | 150 | 145 | 9 | 〃 | 7.5 | 63 |
150YW200-10 | 〃 | 200 | 10 | 〃 | 15 | 64 |
150YW160-15 | 〃 | 160 | 15 | 〃 | 15 | 67 |
150YW180-22 | 〃 | 180 | 22 | 〃 | 18.5 | 74 |
150YW150-26 | 〃 | 150 | 26 | 〃 | 18.5 | 72 |
150YW130-30 | 〃 | 130 | 30 | 〃 | 22 | 69 |
150YW200-30 | 〃 | 200 | 30 | 〃 | 37 | 65 |
150YW150-35 | 〃 | 150 | 35 | 〃 | 37 | 63 |
200YW250-11 | 200 | 250 | 11 | 〃 | 15 | 72 |
200YW250-15 | 〃 | 250 | 15 | 〃 | 18.5 | 72 |
200YW400-10 | 〃 | 400 | 10 | 〃 | 22 | 75 |
200YW310-13 | 〃 | 310 | 13 | 〃 | 22 | 71 |
200YW400-13 | 〃 | 400 | 13 | 〃 | 30 | 76 |
200YW250-22 | 〃 | 250 | 22 | 〃 | 30 | 71 |
200YW350-25 | 〃 | 350 | 25 | 〃 | 37 | 73 |
200YW250-35 | 〃 | 〃 | 35 | 〃 | 45 | 69 |
250YW600-9 | 250 | 600 | 9 | 〃 | 30 | 78 |
250YW600-12 | 〃 | 600 | 12 | 〃 | 37 | 76 |
250YW600-15 | 〃 | 600 | 15 | 〃 | 45 | 73 |
