ZX Self-priming Centrifugal Pump

ZX series self-priming centrifugal pump is horizontal type. Compare with other centrifugal pumps, no bottom valve needed at the pipeline, just to ensure the pump filled with priming fluid before working. Thus simplifying the piping system, and also improved working conditions.

Quantity:

ZX series self-priming centrifugal pump is horizontal type. Compare with other centrifugal pumps, no bottom valve needed at the pipeline, just to ensure the pump filled with priming fluid before working. Thus simplifying the piping system, and also improved working conditions.

Applications
① for urban environmental protection, construction, fire, chemical, pharmaceutical, dyestuff, printing, brewing, electricity, electroplating, paper, petroleum, mining, equipment cooling, tanker unloading.
② for water, sea water and chemical liquid with acid and alkali, slurry with general paste (medium viscosity ≤ 100 centipoise, up to 30% solid content).
③ fitted with sprinkler, can flush the water into the air and scattered into small drops in the spray, is the good equipment for farms, nurseries, orchards, tea plantations.
④ can be matched with any type of filters, to filter the slurry with a filter press.

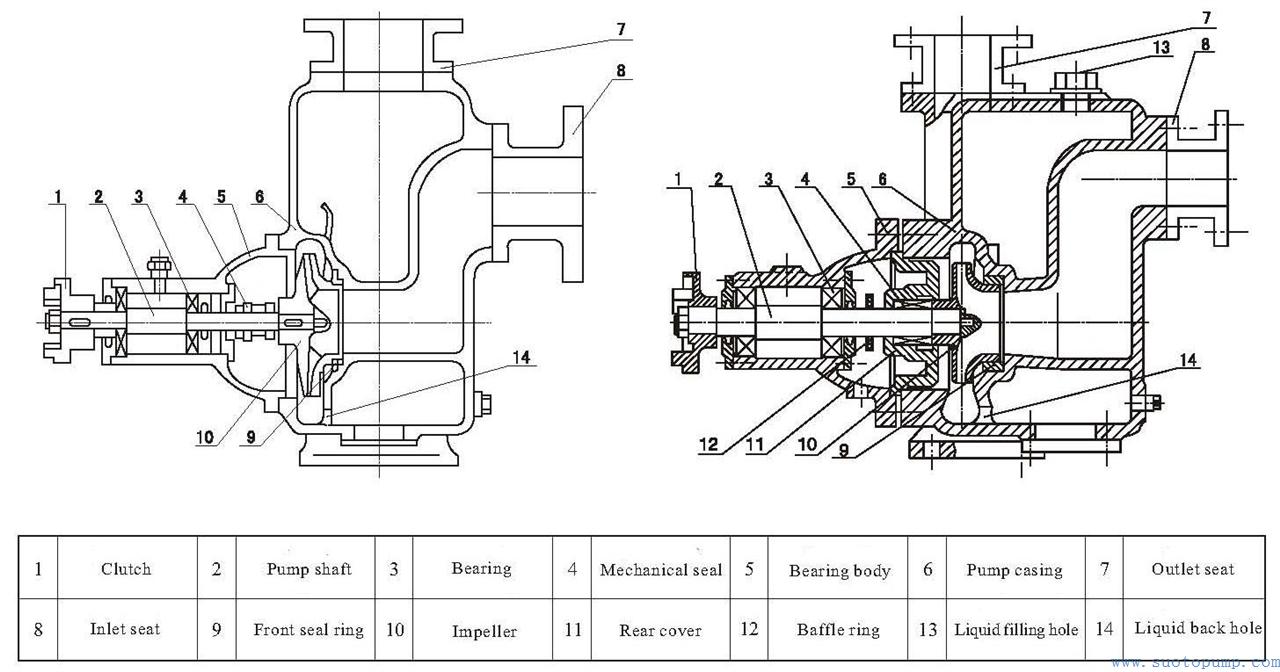

ZX sectional drawing



Model
Capacity
Head
(m)
NPSH
(m)
Speed
(r/min)
Prime Time
(min/5m)
Power(Kw)
(m3/h)
(L/s)
Shaft
Motor
25ZX3.2-20
3.2
0.9
20
6.5
2900
1.9
0.46
0.75
25ZX3.2-32
3.2
0.9
32
6.5
2900
1.8
0.8
1.1
40ZX6.3-20
6.3
1.8
20
6.5
2900
1.9
0.87
1.1
40ZX10-40
10
2.8
40
6.5
2900
1.5
2.7
4
50ZX15-12
15
4.2
12
6.5
2900
2.4
1.1
1.5
50ZX18-20
18
5
20
6.5
2900
1.9
1.8
2.2
50ZX12.5-32
12.5
3.5
32
6.5
2900
1.5
2.1
3
50ZX20-30
20
5.6
30
6.5
2900
1.5
2.6
4
50ZX14-35
14
3.9
35
6.5
2900
1.5
2.7
4
50ZX10-40
10
2.8
40
6.5
2900
1.5
2.7
4
50ZX12.5-50
12.5
3.5
50
6.5
2900
1.4
4.3
5.5
50ZXZX15-60
15
4.2
60
6.5
2900
1.3
6.2
7.5
50ZX20-7.5
20
5.6
7.5
6.5
2900
1.3
9.8
11
65ZX30-15
30
8.3
15
6.5
2900
2
1.9
3
65ZX25-32
25
6.9
32
6
2900
1.5
4.4
5.5
80ZX35-13
35
9.7
13
6
2900
3.4
1.9
3
80ZX43-17
43
12
17
6
2900
1.8
3.1
4
80ZX40-22
40
11.1
22
6
2900
1.9
4.4
5.5
80ZX50-25
50
13.9
25
6
2900
1.5
5.2
7.5
80ZX50-32
50
13.9
32
6
2900
1.5
6.8
7.5
80ZX60-55
60
16.7
55
6
2900
1.5
15
18.5
80ZX60-70
60
16.7
70
6
2900
1.2
20.1
22
100ZX100-20
100
27.8
20
6
2900
1.8
7.8
11
100ZX100-40
100
27.8
40
6
2900
1.8
16.3
22
100ZX100-65
100
27.8
65
6
2900
1.8
27.7
30
100ZX70-75
70
19.4
75
6
2900
1.8
24.3
30
150ZX170-55
170
47.2
55
5
2900
1.8
39.2
45
150ZX170-65
170
47.2
65
5
2900
1.3
46.3
55
150ZX160-80
160
44.4
80
5
2900
1.2
53.6
55
200ZX400-32
400
111.1
32
5
1450
2
52.1
55
200ZX280-63
280
77.8
63
5
1450
1.5
73.9
90
200ZX350-65
350
97.2
65
5
1450
1.5
97.2
110
250ZX550-32
550
152.8
32
5
1450
2
72.3
75
250ZX400-50
400
111.1
50
5
1450
2
80
90
250ZX450-55
450
125
55
5
1450
2
102.1
110
250ZX400-75
400
111.1
75
5
1450
1.5
125.6
132
300ZX600-32
600
166.7
32
5
1450
2
79.2
90
300ZX500-50
500
138.9
50
5
1450
2
104.6
110
300ZX550-55
550
152.8
55
5
1450
2
117.6
132
