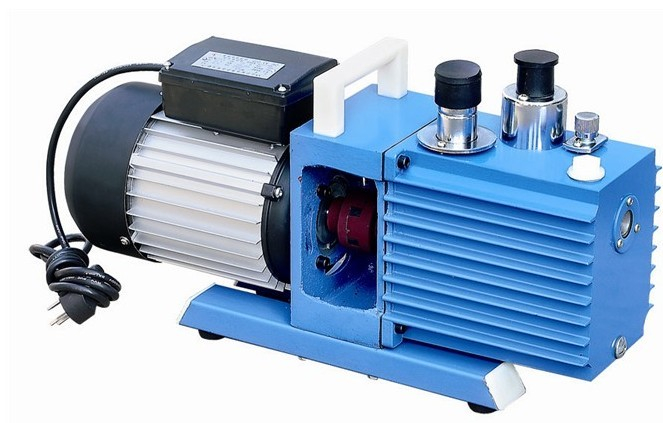

2XZ Rotary Vane Vacuum Pump

2XZ series vacuum pump has bipolar direct connecting structure, the working performance Is consisted of high pressure and low pressure grades. The inhalant hole Connects with vacuum equipment, the air in the container will be inhaled and exhausted Greatly while running.
Availability:
Quantity:

This series of pumps are elementary equipment for pumping air from sealed vassels. It can be used alone, also can be used as the fore pump, process pump or titanium pump of booster pump, diffusion pump, and molecular pump. The pumps are also used in making electrical vacuum cases, vacuum jointing, printing, photoengraving, food packaging, vacuum forming, refrigeration equipment repair and instruments or a set of equipments in laboratory, It is widely used in aerospace, semiconductor , coating , food packaging ,drying machines, refrigeration equipment, scientific research, medical treatment, electronics, chemicals, medicine and laboratory or laboratory of universities and colleges.

Features
  a. Small volume, low weight and low noise
  b. Equipped with gas ballast valve to pump a little water vapor.
  c. Equipped with oil anti-suck back device.
  d. 2XZ-2 with small caliber, 2XZ-4 pump with vacuum drying oven, freezing dry machine and printing machine.
  e.Equipped with small caliber transforming joints and KF joints.

Parameters/Model

2XZ-0.25

2XZ-0.5

2XZ-1

2XZ-2

2XZ-4

Pumping speedm3/h(L/S)

50(HZ)

0.9(0.25)

1.8(0.5)

3.6(1)

7.2(2)

14.4(4)

60(HZ)

1.1(0.3)

2.1(0.6)

4.3(1.2)

8.6(2.4)

17.2(4.8)

Ultimate

pressure

(Pa)

Partial pressure

≤6×10-1

≤6×10-2

≤6×10-2

≤6×10-2

≤6×10-2

Total pressure

≤6.5

≤1.33

≤1.33

≤1.33

≤1.33

Rotary speed(r/min)

50(HZ)

1400

1400

1400

1400

1400

60(HZ)

1720

1720

1720

1720

1720

Moter power(kw)

0.12

0.18

0.25

0.37

0.55

Voltage(V)

220

220/380

220/380

220/380

220/380

Inlet diam(O.D.)(mm)

φ15

φ20

φ20

φ30

φ30

Noise level(dBA)

63

65

65

68

68

Oil capacity(L)

0.5

0.6

0.7

1

1.2

Dimensions(mm)

403×130×240

447×168×260

469×168×260

514×168×282

565×168×282

Gross weight/Net weight(Kg)

16/15

17/16

18/17

22/20

24/22
