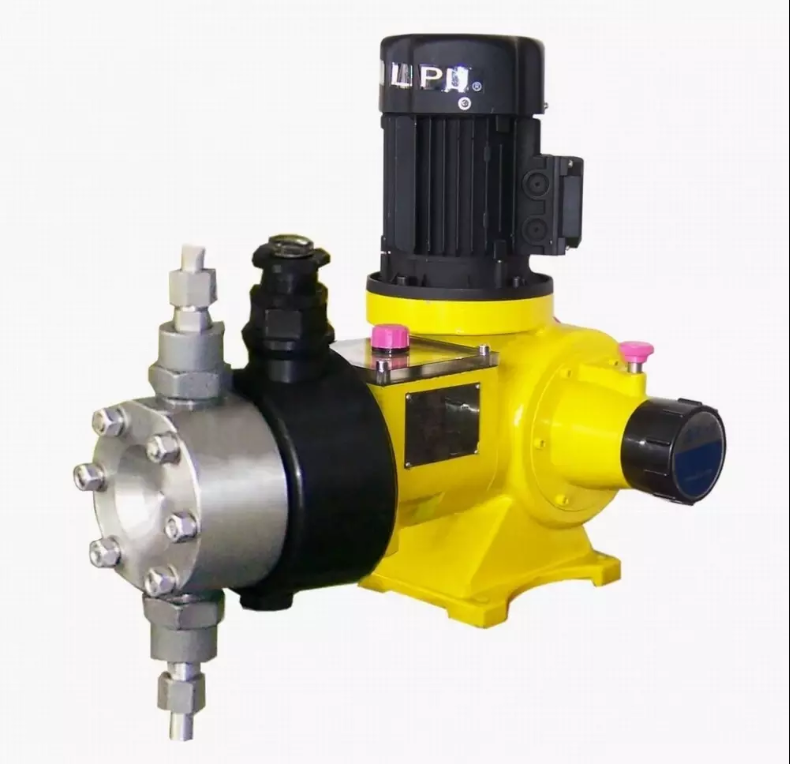

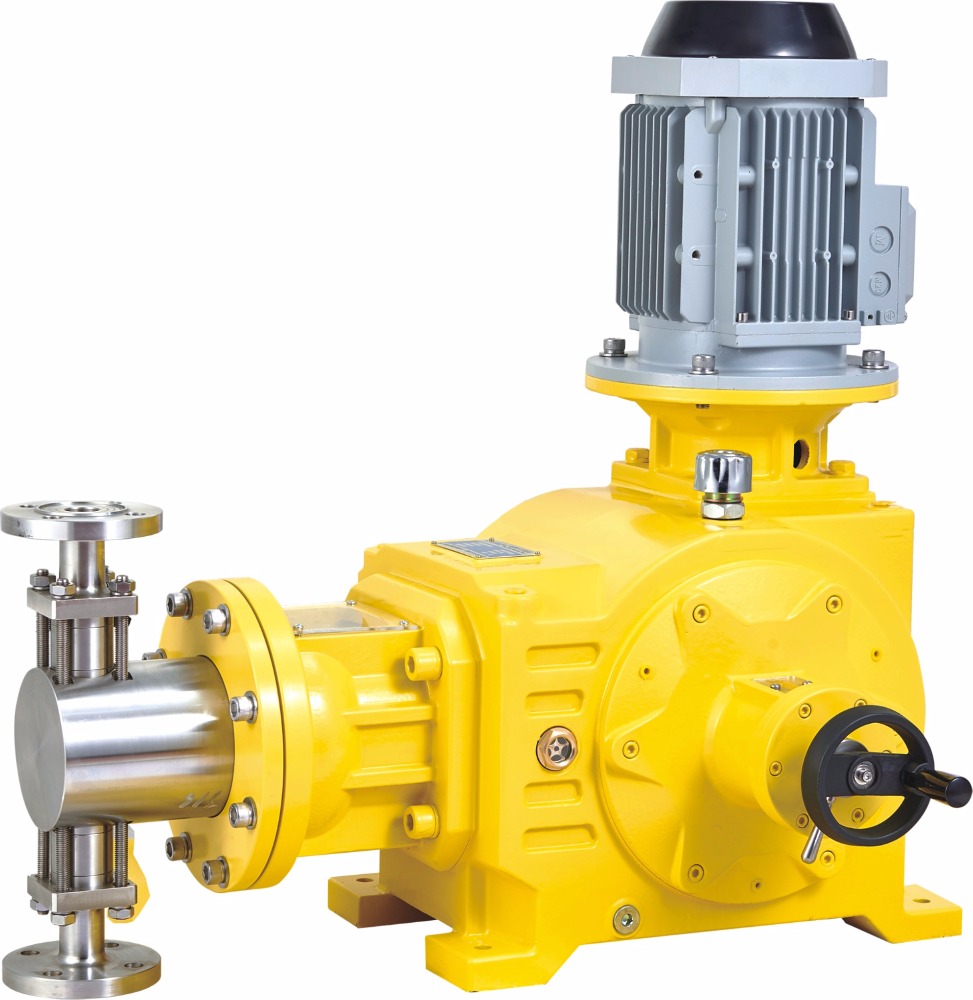

Industrial Chemical Hydraulic Diaphragm Dosing Pump

Seal no leakage, hydraulic driven diaphragm, maintenance free
High precision inlet and outlet check valve
Built in adjustable pressure relief valve, limit automatic oil filling valve to ensure measurement accuracy.
Availability:
Quantity:

Seal no leakage, hydraulic driven diaphragm, maintenance free
High precision inlet and outlet check valve
Built in adjustable pressure relief valve, limit automatic oil filling valve to ensure measurement accuracy.
Dual diaphragm / break alarm function.
PTFE material, diaphragm life longer than 8000 hours >3000 hours; metal diaphragm
Manual / automatic / digital frequency control flow.
Pump in the running and stop state can adjust the flow, accuracy + 1%
Maximum suction range 4.5m water column
Medium temperature: PTFE diaphragm is less than or equal to 120 DEG C, the metal diaphragm is less than or equal to 200 DEG C
A variety of pump head material optional: PVC, PTFE, PVDF, 304, 316L and 20# alloy, ha B, ha C, etc..
Can work alone, but also multiple parallel.
Maximum applicable medium viscosity <2000CP
