Industrial Chemical High Pressure Piston Plunger Metering Pump

Maximum rated flow: 0-22L/h
Can be made into multiple parallel use
To adapt to the medium temperature: less than or equal to 250 DEG C
Availability:
Quantity:

Maximum rated flow: 0-22L/h
Can be made into multiple parallel use
To adapt to the medium temperature: less than or equal to 250 DEG C
Over flow parts optional material: 304, 316L, No. 20, Hastelloy alloy, ceramics, etc..
Flow control mode: manual / automatic stroke adjustment / digital frequency conversion control to achieve automatic control of external signals.
Pump can be adjusted in the operation or stop state
For single cylinder pump, double pump cylinder and three cylinder pump flow can be adjusted independently
Flow stable viscosity + 1%.
Import and export connection: sleeve type welded pipe joint type and flange connection
According to the requirement of customers, the pump head flow can be made of insulation jacket, electric heating type etc..

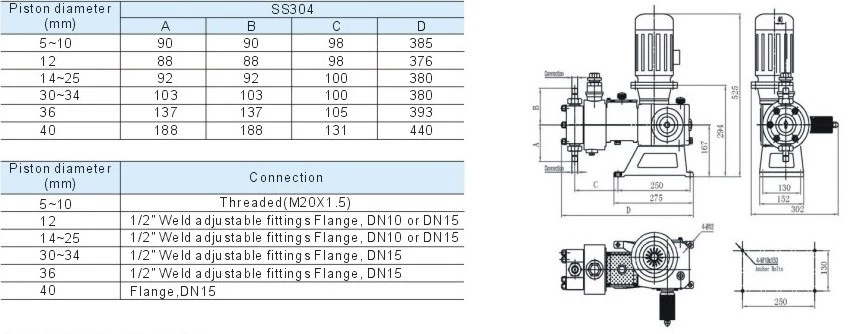

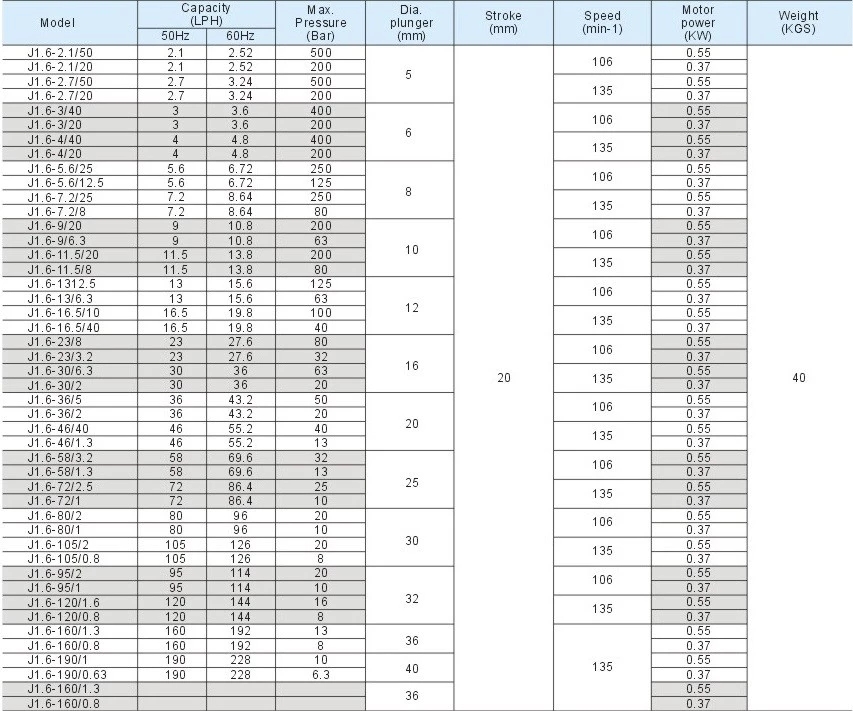

Plunger Pump 1.webp

Plunger Pump 2.webp
