6"
ST

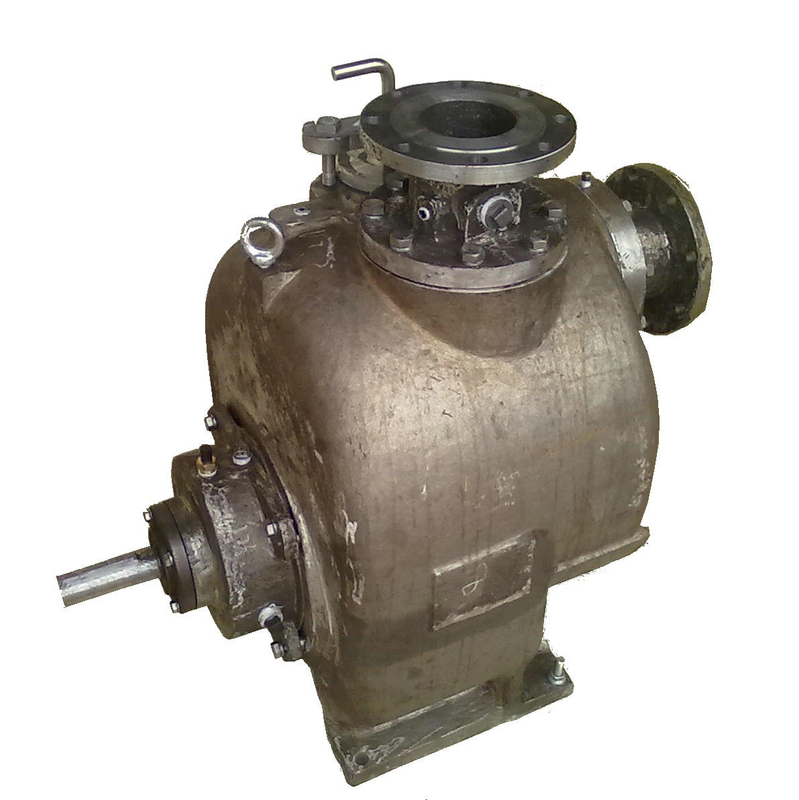

The self-priming trash pump centrifugal ST Series is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service design have made this pump the standard in the industry. The combination of different sized pumps, impeller trims and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system, whether it's a small sub-division or a large waste collection system. Self-priming trash pumps feature a large volute design that allows them to re-prime automatically in a completely open system without the need for suction or discharge check valves - and they can do it with the pump casing only partially filled with liquid and a completely dry suction line.
Working Conditions:
1. The temperature of medium no more than 80°C,the density of medium is 1.0~1.3*103Kg/m3,PH is within5~9
2. Max diameter of solid should be less than 76.2mm
3. Max suction lifts no more than 7.6m
4. Volume ratio of solids in the medium ≤30%

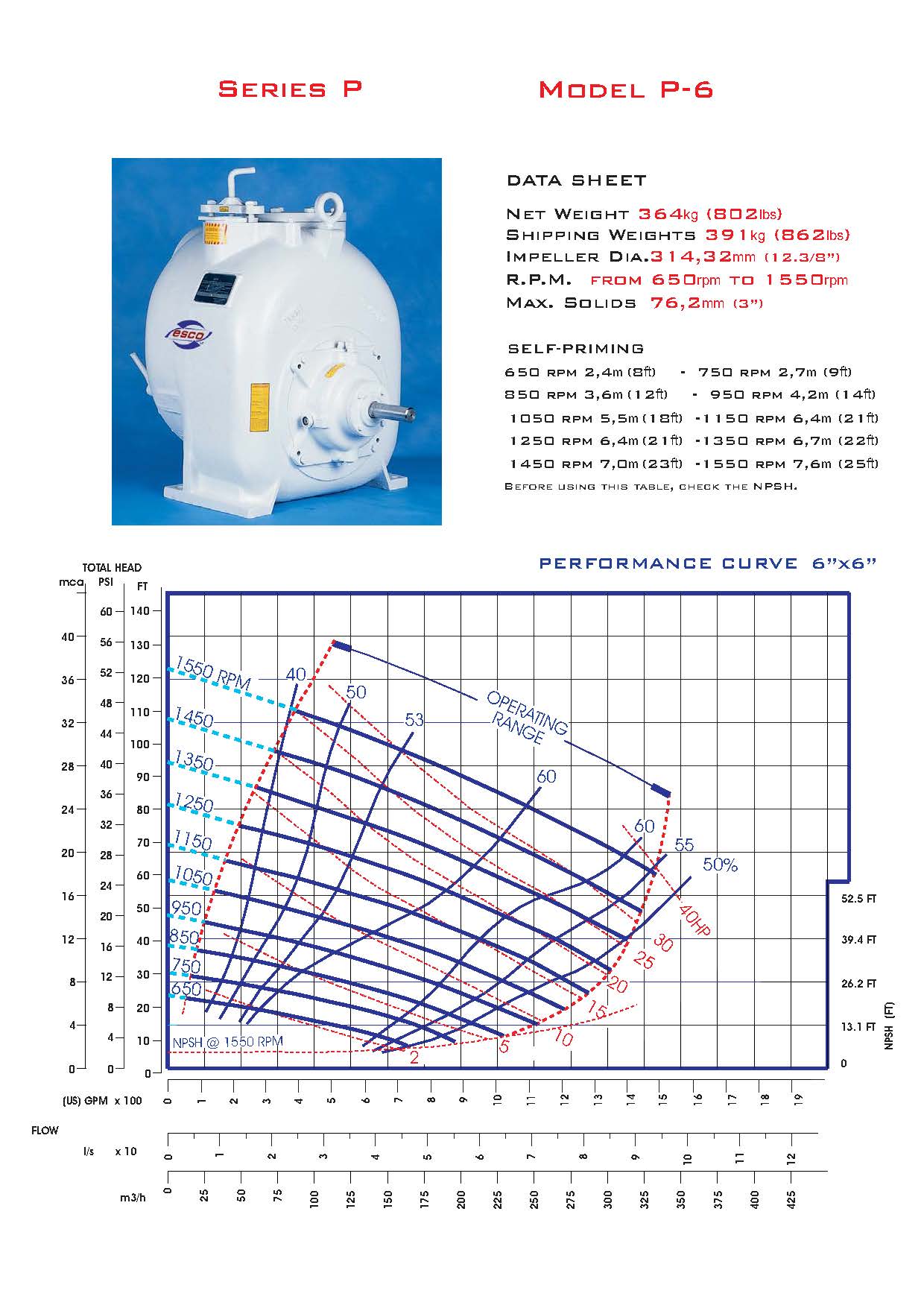

5. Max. working pressure and suction head pls reference performance curve and table
The self-priming trash pump centrifugal ST Series is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service design have made this pump the standard in the industry. The combination of different sized pumps, impeller trims and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system, whether it's a small sub-division or a large waste collection system. Self-priming trash pumps feature a large volute design that allows them to re-prime automatically in a completely open system without the need for suction or discharge check valves - and they can do it with the pump casing only partially filled with liquid and a completely dry suction line.
Working Conditions:
1. The temperature of medium no more than 80°C,the density of medium is 1.0~1.3*103Kg/m3,PH is within5~9
2. Max diameter of solid should be less than 76.2mm
3. Max suction lifts no more than 7.6m
4. Volume ratio of solids in the medium ≤30%
5. Max. working pressure and suction head pls reference performance curve and table
